The RX family provides “easy, secure and safe” cloud connectivity solutions. It is possible to start development immediately, with confidence, because we have obtained device certification with the included real-time OSes (FreeRTOS, AzureRTOS) for IoT and various libraries (SSL/TLS, OTA, MQTT, TCP/IP, etc.) for IoT devices which are provided by major cloud vendors such as Amazon Web Services (AWS) and Microsoft, along with the evaluation kit and convenient development environment (e2 studio), making it ideal for IoT device development.
We support the creation of new business, helping you get to market faster with quicker innovation development by concentrating and streamlining your investment area and utilizing digital transformation (DX) through artificial intelligence (AI) and machine learning (ML) in collaboration with cloud services.

cloud-solution

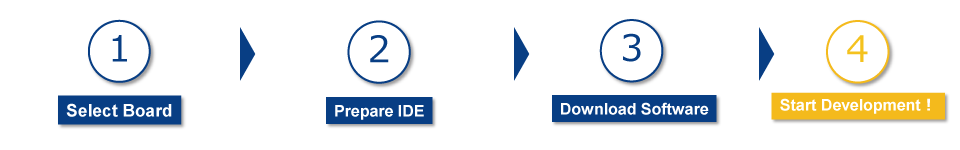

3 steps to proceed with development using the RX Microcontroller Evaluation Kit

3 steps to proceed with development using the RX Microcontroller Evaluation Kit


*1:Currently, only Microsoft AzureRTOS is supported
*2:Can install simultaneously with e2 studio without downloading separately.

Recommended microcontrollers

We have selected the best products for cloud connectivity from our extensive line of RX microcontrollers.
As a basis for this selection, Renesas has ported the RTOS and as a result, believe that the memory resources required are at least 96KB RAM and at least 512KB ROM (or at least 1.5MB for OTA feature implementation).
Taking into account the communications, security and OTA capabilities required for cloud connectivity, we have selected the following products:

  Part Number CPU Frequency ROM RAM Trusted
Secure IP
BGO,
Dual Bank
Driver support
Ether Wi-Fi BLE LTE
MCU RX72M  /  RX72N RXv3 240 MHz 4 MB 1 MB check check check check TBD TBD
RX66N RXv3 120 MHz 4 MB 1 MB check check check check TBD TBD
RX671 RXv3 120 MHz 2 MB 384 KB check check No check TBD TBD
RX65N  /  RX651 RXv2 120 MHz 2 MB 640 KB check check check check TBD TBD

Evaluation Board

You can easily try cloud communication using a board equipped with Renesas devices. You can choose based on the microcontroller, the communication method, and the peripheral functions. You can also download a variety of predefined programs for each board free of charge.
The kit is ideal for:

  1. Evaluation of Renesas devices (MCUs, analog devices, sensors)
  2. As a reference for customers when designing boards and programs
  3. As a learning application for those who are newly starting cloud communications

This is a Cloud communication evaluation kit that can connect to the cloud via Wi-Fi. It is equipped with a Wi-Fi communication module, a temperature/humidity sensor, an optical sensor, a 3-axis accelerometer, a serial communication USB board, and a USB port for debugging, and can be evaluated in a configuration that is close to IoT equipment.

In addition to cloud communication, this multifunctional evaluation kit also supports LCD and voice input. It is equipped with an LCD display, a stereo MEMS microphone, a MicroSD slot, a Wi-Fi/BLE module, a general-purpose USB port, and an RJ45 connector, and cloud communication + HMI can be evaluated with this one unit.

Renesas Startar Kit+ for RX65N-2MB

A general-purpose evaluation kit for RX65N microcontrollers. Cloud communication evaluation via Ether communication is possible. This is equipped with an LCD display, an SD slot, a general-purpose USB port, and an RJ45 connector, and can be used for functional evaluation in addition to cloud communication.

Renesas Starter Kit+ for RX671

The Renesas Starter Kit+ for RX671 is the perfect starter kit for developers who are new to the RX671 (Code Flash 2MB, Pin Count 144-pin). The kit includes an LCD display module and an on-chip debugging emulator.

Program

aws logo

Amazon distributes FreeRTOS free of charge as a real-time operating system for microcontrollers. FreeRTOS includes libraries for connectivity, security and over-the-air (OTA) updates.
Renesas ported FreeRTOS to work on our evaluation board and distributes it free of charge. The ported program is AWS device certified, so you can use it with confidence.

AWS Certified Program

Program Operation Overview Communication Method Development Environment Compiler Board
MQTT Communication Test Program This is a sample program that has been certified by the AWS Device Certification Program. You can easily connect to the AWS IoT Core using this project. Please use this project to develop applications that connect to the AWS IoT Core.
AWS Official GitHub URL : https://console.aws.amazon.com/freertos
Ethernet e2 studio CC-RX Renesas Starter Kit+ for RX65N-2MB
This is a sample program that has been certified by the AWS Device Certification Program. You can easily connect to the AWS IoT Core using this project. Please use this project to develop applications that connect to the AWS IoT Core.
GitHub Repository URL : https://github.com/renesas-rx/amazon-freertos
Wi-Fi e2 studio CC-RX RX65N Cloud Kit
This is a sample program that has been certified by the AWS Device Certification Program. You can easily connect to the AWS IoT Core using this project. Please use this project to develop applications that connect to the AWS IoT Core with the conditions on the right.
GitHub Repository URL : https://github.com/renesas-rx/amazon-freertos

Ethernet

Wi-Fi

e2 studio

CC-RX

GCC

RX72N Envision Kit
This is a sample program that has been certified by the AWS Device Certification Program. You can easily connect to the AWS IoT Core using this project. Please use this project to develop applications that connect to the AWS IoT Core with the conditions on the right.
GitHub Repository URL : https://github.com/renesas-rx/amazon-freertos
Wi-Fi e2 studio

CC-RX

GCC

Renesas Starter Kit+ for RX671
OTA Firmware Update Program This is an AWS device certified sample program that supports the OTA firmware update program Over-the-Air (OTA) function. You can update the firmware of your RX65N microcontroller using AWS' S3 and job creation function. Please use this project when utilizing the OTA function.
GitHub Repository URL : https://github.com/renesas-rx/amazon-freertos
RX Family How to implement FreeRTOS OTA by using Amazon Web Services on RX65N Rev.1.01 (PDF | English, 日本語)
Renesas MCU Firmware Update Design Policy Rev.1.00 (PDF | English, 日本語)
Ethernet e2 studio CC-RX Renesas Starter Kit for RX65N-2MB

Extended Programs

Program Operation Overview Communication Method Development Environment Compiler Board
Sensor Data Upload Program This is a sample program that comes preinstalled in the RX65N Cloud Kit. It connects to the AWS cloud and sends sensor data by entering provisioning information via TeraTerm. Please use this for the initial operation confirmation.
GitHub Repository URL : https://github.com/renesas-rx/rx65n-cloud-kit
Wi-Fi e2 studio CC-RX RX65N Cloud Kit
This is a sample program that extends the AWS certified program and transmits sensor data to the AWS cloud. You can visualize and control sensor data with AWS cloud services. Please use this for proof of concept (PoC) development.
The project can be downloaded at: Visualizing and Controlling Sensor Information Using Amazon Web Services with RX65N Cloud Kit and FreeRTOS
Wi-Fi e2 studio CC-RX
GCC
RX65N Cloud Kit
Trusted Secure IP-enabled MbedTLS This is a sample program that communicates MbedTLS of FreeRTOS using Trusted Secure IP (TSIP), which is a security H / W IP. By combining MbedTLS and TSIP, cloud authentication information can be securely stored in the internal ROM.
TSIP (Trusted Secure IP) Module Firmware Integration Technology (Binary Version)
Wi-Fi e2 studio CC-RX RX72N Envision Kit
Azure-logo

Microsoft offers Azure RTOS as a real-time OS for microcontrollers. It can be used to develop embedded IoT applications. Renesas 32-bit RX microcontrollers have been prelicensed by Microsoft, so you don't need to obtain a separate Azure RTOS license. Renesas has ported the Azure RTOS to work on our evaluation boards and distributes it free of charge. The ported program has also been certified to work with Microsoft and is safe to use.

Microsoft Certified Programs

Program Operation Overview Communication Method Development Environment Compiler Board
MQTT Communication Test Program This is an Azure RTOS-based sample program that Microsoft has confirmed to connect to Azure Cloud. You can use the MQTT protocol to send text messages to the Azure Cloud.
Microsoft Official GitHub URL : https://github.com/azure-rtos/samples
Ethernet e2 studio
IAR Embedded Workbench for RX
CC-RX
GCC
IAR
Renesas Starter Kit for RX65N-2MB
This is an Azure RTOS-based sample program that Microsoft has confirmed to connect to Azure Cloud. You can use the MQTT protocol to send text messages to the Azure Cloud.
Microsoft Official GitHub URL : https://github.com/azure-rtos/samples
Wi-Fi e2 studio
IAR Embedded Workbench for RX
CC-RX
GCC
IAR
RX65N Cloud Kit
This is an Azure RTOS-based sample program that Microsoft has confirmed to connect to Azure Cloud. You can use the MQTT protocol to send text messages to the Azure Cloud.
Microsoft Official GitHub URL : https://github.com/azure-rtos/samples
Wi-Fi e2 studio CC-RX
GCC
IAR
Renesas Starter Kit+ for RX671
This is an Azure RTOS-based sample program that Microsoft has confirmed to connect to Azure Cloud. You can use the MQTT protocol to send text messages to the Azure Cloud.
Microsoft Official GitHub URL : https://github.com/azure-rtos/samples

Ethernet

Wi-Fi

e2 studio CC-RX
GCC
IAR
RX72N Envision Kit
IoT Plug and Play Ready Program This is an Azure RTOS-based sample program with IoT Plug and Play, which is confirmed to work with Microsoft. You can use this sample code to connect IoT devices and products to Azure IoT Central without program changes, which facilitates connectivity, monitoring, control, and management, and provides a more customizable dashboard. This allows you to quickly and easily create PoC.
The project can be downloaded at (Microsoft's Official GitHub URL): https://github.com/azure-rtos/samples/tree/PublicPreview/PnP
Wi-Fi e2 studio
IAR Embedded Workbench for RX
CC-RX
GCC
IAR
RX65N Cloud Kit
