2.5V/3.3V 8:1 Mux/Demux High Bandwidth Bus Switch
Jump to Page Section:
Overview

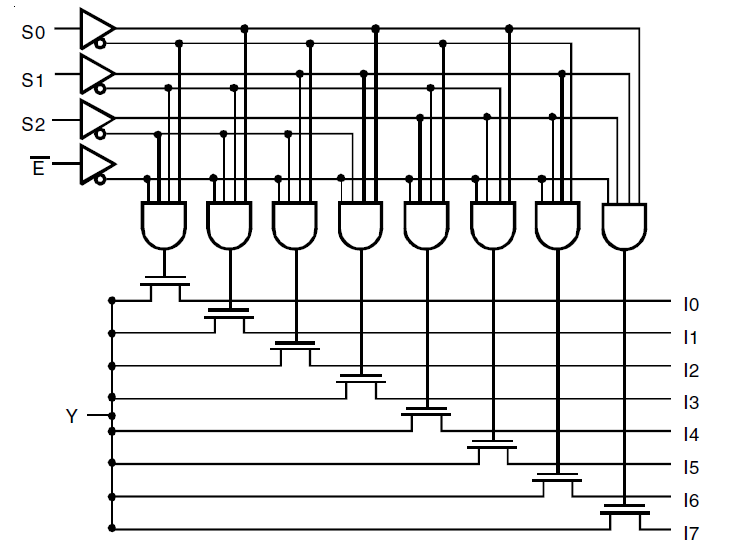

Description
The QS3VH251 HotSwitch Quad 2:1 multiplexer/demultiplexer is a high bandwidth bus switch with very low ON resistance, resulting in under 250ps propagation delay through the switch. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH251 ideal for high performance comminucation applications. The QS3VH251 operates from -40C to +85C.
Features
- N channel FET switches with no parasitic diode to VCC
- Isolation under power-off conditions
- No DC path to VCC or GND
- 5V tolerant in OFF and ON state
- 5V tolerant I/Os
- Low RON - 4 ohm typical
- Flat RON characteristics over operating range
- Rail-to-rail switching 0 - 5V
- Bidirectional dataflow with near-zero delay: no added ground bounce
- Excellent RON matching between channels
- VCC operation: 2.3V to 3.6V
- High bandwidth - up to 500MHz
- LVTTL-compatible control Inputs
- Undershoot Clamp Diodes on all switch and control Inputs
- Low Demux capacitance, 4pF typical
- Available in 16 pin QSOP and TSSOP packages
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 341 KB | Datasheet | ||
| PDF 64 KB | Device Errata | ||
| PDF 313 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 596 KB | Product Change Notice | ||
| PDF 544 KB | Product Change Notice | ||
| PDF 663 KB | Product Change Notice | ||
| PDF 24 KB | Product Change Notice | ||
| PDF 18 KB | Product Change Notice | ||
| PDF 16 KB | Product Change Notice | ||
| PDF 47 KB | Product Change Notice | ||
| PDF 35 KB | Product Change Notice | ||
| PDF 21 KB | Product Change Notice | ||
| PDF 109 KB | Product Change Notice | ||
| PDF 116 KB | Product Change Notice | ||
| PDF 110 KB | Product Change Notice | ||
| PDF 9 KB | Product Change Notice | ||
| PDF 27 KB | Product Change Notice | ||
19 items
|
|||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| TSSOP | 16 | C | Yes | Tube | ||
| TSSOP | 16 | C | Yes | Reel | ||
| QSOP | 16 | C | Yes | Tube | Get Samples, | |
| QSOP | 16 | C | Yes | Reel |
