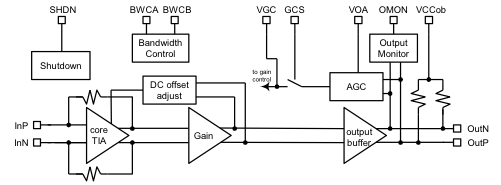

The GX36220 is a dual 32Gb/s linear Trans-Impedance Amplifier (TIA) for 400G coherent Receiver Optical Sub-Assemblies (ROSAs). The GX36220 integrates two TIA signal paths for I and Q channels. The high-performance, low power, and compact design of the GX36220 enables small form factors like CFP2 and CFP4.
|Document title||Document type Type||Date Date|
|PDF 285 KB||Datasheet - Short-form|
|PDF 216 KB||Overview|
|PDF 134 KB||Product Change Notice|
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
