Clocks & Timing

Renesas clock generators and synthesizers are all PLL-based products that generate one or more clock signals within an application. This category contains low jitter clock generators suitable for serial data applications up to 100G. Many other applications, such as PCIe, have separate pages under Application-Specific Clocks. If more than one unique output frequency is required (e.g. 100MHz and 125MHz), make use of the “Output Banks” parametric selector. Each bank corresponds to a unique output frequency. The number of outputs per bank is highly variable depending on the clock generator.

Once the clock generator is selected, fanout buffers can be used to provide additional copies and types (LVCMOS, LVPECL, etc) of outputs. Renesas has the largest selection of timing products in the industry, which allows for highly optimized solutions.

Product Selection Table

    Processing table
    Diff. Outputs
    Output Type
    Output Freq Range (MHz)
    Input Freq (MHz)
    Inputs (#)
    Input Type
    Output Banks (#)
    Core Voltage (V)
    Output Voltage (V)
    Phase Jitter Typ RMS (ps)
    Phase Jitter Max RMS (ps)
    105°C Max. Case Temp.
    Part Number
    843N571I
    FemtoClock NG™ Clock Synthesizer    		 LVCMOS, LVPECL 25, 33.33, 100, 125, 156.25 25 2 Crystal, LVCMOS 5 3.3 3.3 0.212
    8A34001
    System Synchronizer for IEEE 1588 - Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34002
    System Synchronizer for IEEE 1588 - Four Channels    		 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34003
    System Synchronizer for IEEE 1588 - Four Channels    		 4 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34004
    System Synchronizer for IEEE 1588 - Two Channels    		 4 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34005
    System Synchronizer for IEEE 1588 - Four Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34011
    Line Card Synchronizer for IEEE 1588 - Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34012
    Line Card Synchronizer for IEEE 1588 - Four Channels    		 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34013
    Line Card Synchronizer for IEEE 1588 - Four Channels    		 4 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34041
    Multichannel DPLL / DCO - Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 16 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34042
    Multichannel DPLL / DCO - Four Channels    		 8 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 14 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34043
    Multichannel DPLL / DCO - Four Channels    		 4 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 4 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34044
    Multichannel DPLL / DCO - Four / Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 8 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8A34045
    Multichannel DPLL / DCO - Two / Eight Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 4 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 0.2
    8T49N004I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 4-Outputs    		 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 0.292
    8T49N006I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 6-Outputs    		 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 0.292
    8T49N008I
    Programmable FemtoClock™ NG LVPECL/LVDS Clock Generator with 8-Outputs    		 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 1 2.5, 3.3 2.5, 3.3 0.212 0.292
    8T49N012I
    FemtoClock™ NG Crystal-to-3.3V, 2.5V LVPECL/LVCMOS Clock Generator with Fanout Buffer    		 CMOS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 3 2.5, 3.3 2.5, 3.3 0.19 0.26
    8T49N028
    Crystal-to-3.3V, 2.5V Multiple Frequency Clock Generator with Fanout Buffer    		 LVDS, LVPECL 15.16 - 1250 10 - 312.5 2 Crystal, HCSL, LVDS, LVPECL 4 2.5, 3.3 2.5, 3.3 0.212 0.292
    8T49N242
    FemtoClock™ NG Universal Frequency Translator    		 4 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 1.8, 2.5, 3.3 0.276
    8T49N285
    FemtoClock NG Universal Frequency Translator (2-in/1-PLL/8-out)    		 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL 4 2.5, 3.3 1.8, 2.5, 3.3 0.28
    8T49N286

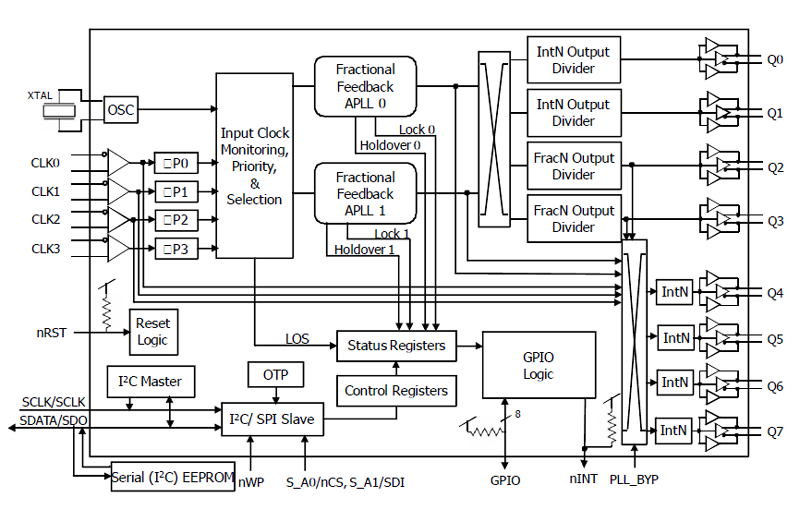

    FemtoClock NG Universal Frequency Translator (4-in/2-PLL/8-out)    		 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 4 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 2.5, 3.3 0.28
    8T49N287
    FemtoClock NG Universal Frequency Translator (2-in/2-PLL/8-out)    		 8 HCSL, LVCMOS, LVDS, LVPECL 0.008 - 1000 0.008 - 875 2 HCSL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 4 2.5, 3.3 2.5, 3.3 0.28
    8V41NS0412
    FemtoClock™ NG 12-Output Clock Generator    		 11 HCSL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.095
    8V44N003I
    FemtoClock™ NG LVDS Clock Synthesizer    		 LVDS 50 - 1200 20 - 500 1 HCSL, LVCMOS, LVDS, LVPECL, Sine Wave 1 3.3 3.3 0.3 0.45
    8V49NS0312
    FemtoClock™ NG 12-Output Clock Generator    		 11 LVDS, LVPECL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.089
    8V49NS0412
    FemtoClock™ NG 12-Output Clock Generator    		 11 LVDS, LVPECL 10.91 - 2500 5 - 1000 2 Crystal, HCSL, HSTL, LVCMOS, LVDS, LVHSTL, LVPECL 4 3.3 3.3 0.08
    8V97003
    Wideband 18GHz RF and Microwave Synthesizer    		 171.875 - 18000 10 - 1000 1 Yes
    8V97051L
    Low Power Wideband Fractional RF Synthesizer    		 34.375 - 4400 5 - 310 1 Yes
    8V97052
    High Performance Wideband Fractional RF Synthesizer / PLL    		 34.375 - 4400 5 - 310 1 Yes
    8V97053L
    High Performance Wideband Fractional RF Synthesizer / PLL    		 34.375 - 4400 5 - 310 1 Yes
    RC210
    VersaClock® 7 Programmable Clock Generator Family    		 8, 12 LP-HCSL, LVCMOS, LVDS 0.001 - 650 1 - 650 4 Crystal, LP-HCSL, LVCMOS, LVDS 6 1.8, 2.5, 3.3 1.8, 2.5, 3.3 0.15
    RC22504A
    FemtoClock™ 2 Clock Generator    		 4 HCSL, LVCMOS, LVDS 10 - 1000 25 - 312.5 2 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 0.1
    RC22514A
    FemtoClock™ 2 Clock Generator    		 4 HCSL, LVCMOS, LVDS 10 - 1000 0 4 1.8, 3.3 1.8 0.079 0.1
    RC32504A
    FemtoClock™ 2 Jitter Attenuator or Clock Generator    		 4 HCSL, LVCMOS, LVDS 10 - 1000 5 - 1000 3 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 0.1
    RC32508A
    FemtoClock 2 Jitter Attenuator or Clock Generator    		 8 HCSL, LVCMOS, LVDS 10 - 1000 1 - 800 3 Crystal, HCSL, LVCMOS, LVDS 8 1.8, 3.3 1.8 0.067 -2, 0.1 No
    RC32514A
    FemtoClock™ 2 Jitter Attenuator or Clock Generator    		 4 HCSL, LVCMOS, LVDS 10 - 1000 1 - 800 3 Crystal, HCSL, LVCMOS, LVDS 4 1.8, 3.3 1.8 0.079 0.1
    RC32614A
    System Synchronizer for IEEE 1588 - Six Channels    		 14 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.0000005 - 1000 8 HCSL, LVDS, LVHSTL, LVPECL, SSTL 8 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.1 0.2
    RC38612
    Radio Access Network Equipment Synchronizer - Six Channels    		 12 HSTL, LVCMOS, LVDS, LVHSTL, LVPECL, LVTTL 0.0000005 - 1000 0.001 - 1000 10 HCSL, LVDS, LVHSTL, LVPECL, SSTL 6 2.5, 3.3 1.2, 1.5, 1.8, 2.5, 3.3 0.15 No
