Overview

The MK3200 is IDT's lowest cost, low power clock oscillator that generates a low power 32.768 kHz output from an inexpensive 32.768 kHz crystal. This part includes a power down pin and allows you to tri state the output clock for in-circuit testing. IDT manufactures the largest variety of clock synthesizers for all applications. If more clock outputs are needed, including MHz frequencies, see the MK32xx family of parts. Consult IDT to eliminate VCXOs, crystals and oscillators from your board.

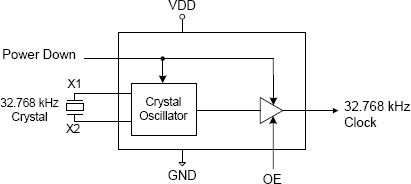

MK3200 - Block Diagram
MK3200 - Pinout
MK3200 - Block Diagram
MK3200 - Pinout
  • Packaged in 8-pin SOIC or 8-pin MSOP (3.00 mm body)
  • Pb (lead) free package
  • Operates from 2.5 V to 5 V
  • Consumes only 3.5 ?A in normal operation
  • Accepts an inexpensive 32.768 kHz crystal input
  • Offers power down mode
  • Includes an Output Enable pin to tri state the output for in-circuit testing
  • Advanced, low power, sub-micron CMOS process
  • For other 32.768 kHz-based clocks with MHz outputs, please consult IDT
  • Industrial temperature version available

Documentation

Title
Type 		Date
MK3200 Datasheet
PDF 166 KB 		Datasheet
Termination Options for High-Speed LVCMOS Driver Clock Drivers
PDF 187 KB 		Application Note
AN-805 Recommended Ferrite Beads
PDF 91 KB 		Application Note
AN-827 Application Relevance of Clock Jitter
PDF 1.99 MB 		Application Note
PDN# : CQ-16-04 QUARTER MARKET DECLINED PDN
PDF 560 KB 		End Of Life Notice
AN-828 Termination - LVPECL
PDF 322 KB 		Application Note
PCN# : A1602-01(R1) Add Greatek Taiwan as Alternate Assembly
PDF 611 KB 		Product Change Notice
PCN# : A1602-01 Add Greatek Taiwan as Alternate Assembly
PDF 611 KB 		Product Change Notice
PCN# : TB1504-01R1 Qty per Reel Standardization for Selective Packages
PDF 95 KB 		Product Change Notice
PCN# : TB1504-01 Qty per Reel Standardization for Selective Packages
PDF 50 KB 		Product Change Notice
AN-831 The Crystal Load curve
PDF 395 KB 		Application Note
AN-844 Termination - AC Coupling Clock Receivers
PDF 170 KB 		Application Note
AN-842 Thermal Considerations in Package Design and Selection
PDF 495 KB 		Application Note
AN-840 Jitter Specifications for Timing Signals
PDF 442 KB 		Application Note
AN-838 Peak-to-Peak Jitter Calculations
PDF 115 KB 		Application Note
AN-839 RMS Phase Jitter
PDF 233 KB 		Application Note
AN-832 Timing Budget and Accuracy
PDF 131 KB 		Application Note
AN-834 Hot-Swap Recommendations
PDF 153 KB 		Application Note
AN-837 Overdriving the Crystal Interface
PDF 133 KB 		Application Note
AN-830 Quartz Crystal Drive Level
PDF 143 KB 		Application Note
AN-815 Understanding Jitter Units
PDF 565 KB 		Application Note
AN-802 Crystal-Measuring Oscillator Negative Resistance
PDF 136 KB 		Application Note
AN-801 Crystal-High Drive Level
PDF 202 KB 		Application Note
AN-806 Power Supply Noise Rejection
PDF 438 KB 		Application Note
AN-803 Crystal Timing Budget and Accuracy for Renesas Timing Clock Products
PDF 108 KB 		Application Note
PCN# : TB1303-02 Change of Tape & Reel Packing Method for Selective Products
PDF 361 KB 		Product Change Notice
PCN# : A1208-01R1 Gold to Copper Wire
PDF 254 KB 		Product Change Notice
27 items

Design & Development

Software Downloads

Title
Type Date
PDN# : CQ-16-04 QUARTER MARKET DECLINED PDN
PDF 560 KB 		End Of Life Notice
1 item

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Buy / Sample
    Part Number
    MK3200SILF
    block_flippedObsolete
    memory
    view_in_ar
    		SOIC 8 I Yes Tube
    MK3200SILFTR
    block_flippedObsolete
    memory
    view_in_ar
    		SOIC 8 I Yes Reel
    MK3200SLF
    block_flippedObsolete
    memory
    view_in_ar
    		SOIC 8 C Yes Tube
    MK3200SLFTR
    block_flippedObsolete
    memory
    view_in_ar
    		SOIC 8 C Yes Reel
