Low Skew,1-to-5 Differential-to-2.5V,3.3V LVPECL/ECL Fanout Buffer
Jump to Page Section:
Overview
Description
The 853S014I is a low skew, high performance 1-to-5, 2.5V/3.3V Differential-to-LVPECL/ECL Fanout Buffer. The 853S014I has two selectable clock inputs. Guaranteed output and part-to-part skew characteristics make the 853S014I ideal for those applications demanding well defined performance and repeatability.

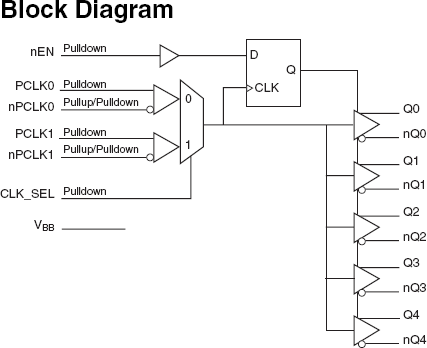

Features
- Five differential LVPECL/ECL outputs
- Two selectable differential LVPECL clock inputs
- PCLKx, nPCLKx pairs can accept the following differential input levels: LVPECL, LVDS, CML, SSTL
- Maximum output frequency: 2GHz
- Output skew: 55ps (maximum)
- Part-to-part skew: 100ps (maximum)
- Propagation delay: 500ps (maximum)
- Additive phase jitter, RMS: 0.10ps (maximum)
- LVPECL mode operating voltage supply range: VCC = 2.375V to 3.8V, VEE = 0V
- ECL mode operating voltage supply range: VCC = 0V, VEE = -3.8V to -2.375V
- -40°C to 85°C ambient operating temperature
- Available in lead-free (RoHS 6) packages
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 337 KB | Datasheet | ||
| PDF 91 KB | Application Note | ||
| PDF 1.99 MB | Application Note | ||
| PDF 322 KB | Application Note | ||
| PDF 170 KB | Application Note | ||
| PDF 495 KB | Application Note | ||
| PDF 442 KB | Application Note | ||
| PDF 180 KB | Application Note | ||
| PDF 153 KB | Application Note | ||
| PDF 160 KB | Application Note | ||
| PDF 120 KB | Application Note | ||
| PDF 565 KB | Application Note | ||
| PDF 331 KB | Overview | ||
| PDF 217 KB | Overview | ||
| PDF 1.83 MB | Overview | ||
| PDF 739 KB | Product Brief | ||
| PDF 378 KB | Product Brief | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 596 KB | Product Change Notice | ||
| PDF 544 KB | Product Change Notice | ||
| PDF 95 KB | Product Change Notice | ||
| PDF 50 KB | Product Change Notice | ||
| PDF 439 KB | Product Change Notice | ||
| PDF 361 KB | Product Change Notice | ||
25 items
|
|||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table

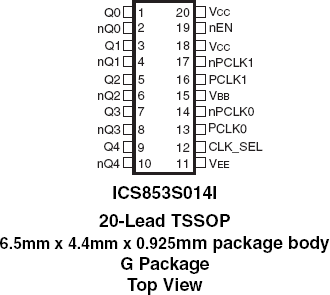

| TSSOP | 20 | I | Yes | Tube | Get Samples, | |
| TSSOP | 20 | I | Yes | Reel |
