This is a solution for three-phase induction motor inverter control (V/F control) using a microcontroller.
Learn more about Three-phase induction motors.
Configuration
- Desk Top Laboratories Inverter (T1102 Trial Series)
- Desk Top Laboratories CPU Card (T5101 RL78/G14 64-pin)
- Desk Top Laboratories Development Support Tool, In-Circuit Scope
- Oriental Motor Induction Motor (5IK150A-TW2)
Software is available for download from the Motor Control Solutions page.
*Inverters, CPU cards, development support tools, and motors need to be arranged separately.
Applications
- Induction motor control for fans, pumps, compressors, etc., in HVAC units.

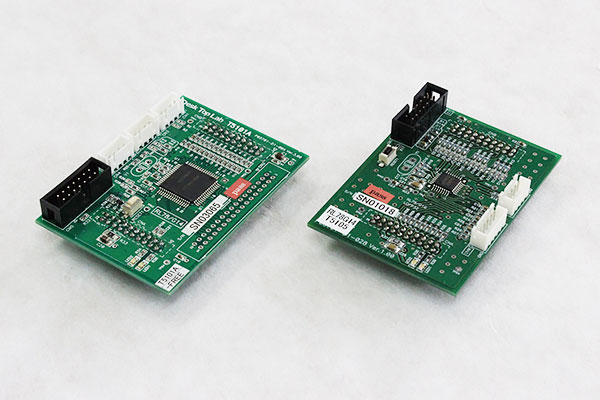

RL78/G14 CPU Cards
