Ultra Low Noise, 5V Precision Voltage Reference
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

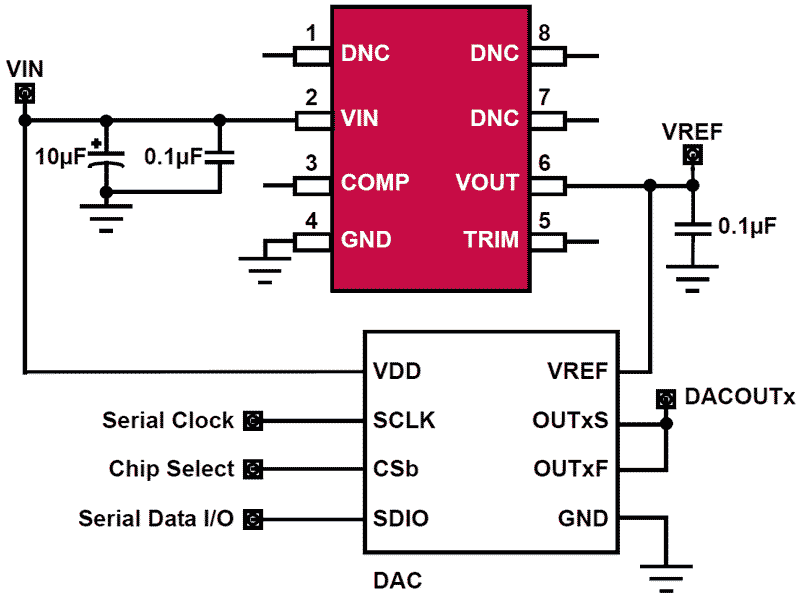

The ISL71010B50 is an ultra low noise, high DC accuracy precision voltage reference, with a wide input voltage range from 7. 0V to 30V. The ISL71010B50 uses the dielectrically isolated PR40 process to achieve 4. 2μVP-P noise at 0. 1Hz to 10Hz with an initial voltage accuracy of ±0. 05%. The ISL71010B50 offers a 5. 0V output voltage with 10ppm/°C temperature coefficient and also provides excellent line and load regulation. The device is offered in an 8 Ld SOIC package. The ISL71010B50 is ideal for high-end instrumentation, data acquisition, and processing applications requiring high DC precision where low noise performance is critical.
Features
- Reference output voltage: 5.0V ±0.05%
- Accuracy over temperature/radiation: ±0.15%
- Output voltage noise: 4.2μVP-P typical (0.1Hz to 10Hz)
- Supply current: 930μA (typical)
- Temperature coefficient: 10ppm/°C (maximum)
- Output current capability: 20mA
- Line regulation: 20ppm/V (maximum)
- Load regulation: 17ppm/mA (maximum)
- NiPdAu-Ag lead finish (Sn Free)
- Dielectrically isolated PR40 process
- Operating temperature range: -55°C to +125°C
- Passes NASA Low Outgassing Specifications
- Characterized radiation level
- Low dose rate (10mrad(Si): 30krad(Si)
- Single event burnout LET: 43MeV•cm2/mg
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Ultra-Low Noise, 5V Radiation Tolerant Precision Voltage Reference Evaluation Board
The ISL71010BM50EV1Z evaluation board measures the performance of the high precision 5.0V ISL71010B50 radiation tolerant voltage reference. The reference has a wide...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
ISL71010BMB50Z Active Samples Available |
Tube | 25 | Get Samples, | |
ISL71010BMB50Z-TK Active Samples Available |
Reel | 1000 | Get Samples, |
