Capacitive Touch Evaluation System for RA6M2
Jump to Page Section:
Back to top
Overview
Description
The RA6M2 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
Features
- Evaluating various touch functions (button, slider, wheel, matrix key, proximity sensor)
- Simple prototyping
- Use as a reference when designing boards or software
- Sensitivity can be easily adjusted using QE for Capaticive Touch Sensors
- GUI makes it easy for starters to develop capacitive touch interfaces
- Simple prototyping
- Use as a reference when designing boards or software
Configuration

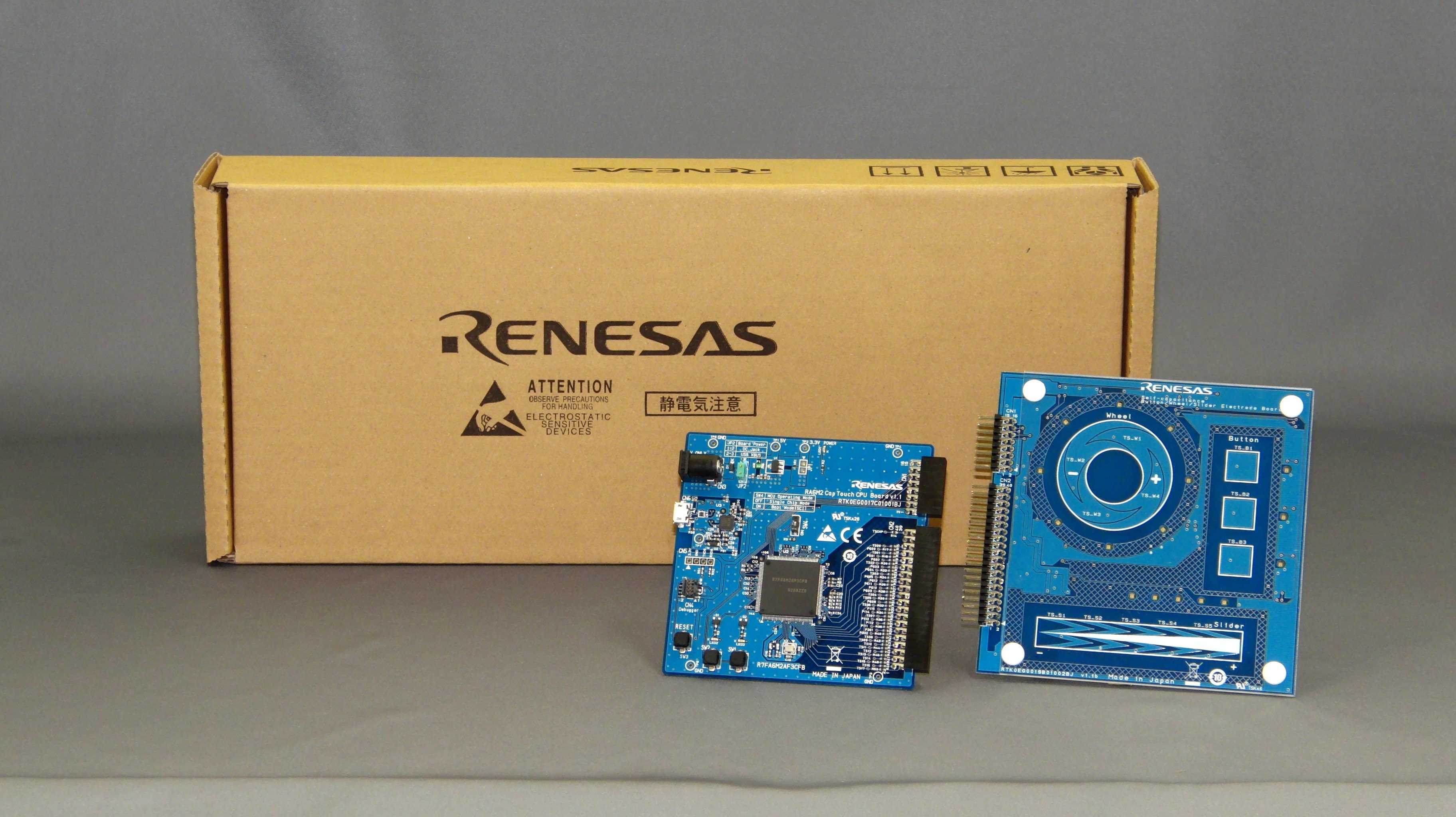

- RA6M2 CPU board
- Touch application board
- Self-capacitance evaluation board Built-in basics for capacitive touch: switches, slider, and wheel
- First Step Guide (development)
- Please download the following from the website.
- e2Studio
- QE for Capacitive Touch[RA]
- Instruction manual (development)
- circuit diagram, pattern diagram (development)
- Sample software (development)
- Application notes (development)
Design & Development
Software & Tools
Software & Tools
| Flexible Software Package (FSP)FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers. Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required. | Software Package | Renesas |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch SensorsIn developing embedded system using the capacitive touch sensor of RA family and RX family MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] Downloads: | Solution Toolkit | Renesas |
Related Boards & Kits
Boards & Kits
Evaluation Kit for RA6M2 MCU Group
The EK-RA6M2 evaluation kit enables users to effortlessly evaluate the features of the RA6M2 MCU Group and develop embedded systems applications using the Flexible...
Featured Documents:
Product Options
Processing table
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
