Overview

A 5V power supply is often used in automotive systems, and monitoring functions can be easily added by using CMIC*1. CMIC GreenPAK™ is a cost-effective NVM*2 programmable device that allows automotive designers to integrate many system functions into a single AEC-Q100 qualified IC, resulting in minimizing component count and board space.

System Benefits:

  • Provides monitoring functions to low cost and simple voltage regulators, including over/undervoltage detection, watchdog timer and reset control during failure detection.
  • Enables retrofitting a CMIC to existing designs.
  • The GreenPAK designer software/development kit enables quick modification to changing design requirements and increased productivity at the design and prototype verification stages.

*1 CMIC: Configurable Mixed-signal IC
*2 NVM: Non-Volatile Memory

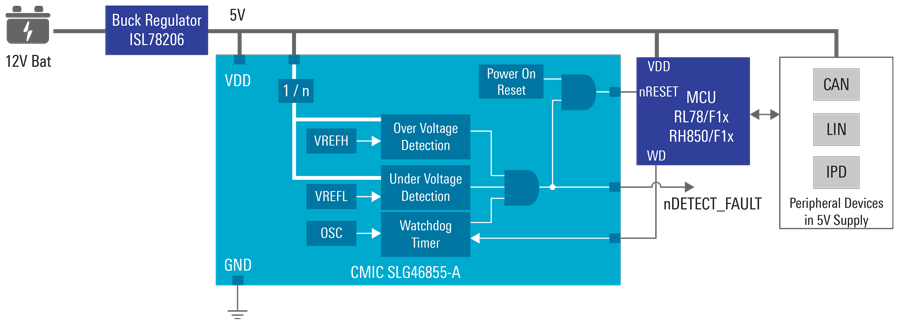

Automotive Monitoring Function Extension
Legend for Renesas/Dialog System Diagrams

Related Products

Product Description Featured Document Ordering

Microcontroller
RL78/F1x 16-Bit Ultra-Low Power Microcontrollers Select User's Manual Select Specific Device
RH850/F1x 32-Bit High-End Automotive Microcontrollers Select User's Manual Select Specific Device

Buck Regulator
ISL78206 40V, 2.5A Buck Controller with Integrated High-Side MOSFET Datasheet Buy/Sample

Configurable Mixed-Signal IC (CMIC)
SLG46855-A Automotive GreenPAK™ Programmable Mixed-Signal Matrix Datasheet Contact Sales
