DA14531

SmartBond TINY™, the world’s smallest and lowest power Bluetooth^® 5.1 System-on-Chip (SoC), brings down the cost of adding Bluetooth Low Energy (LE) in any system and takes mobile connectivity to places previously out of reach, triggering a wave of a billion IoT devices, all with SmartBond TINY at the heart.

The low system cost is achieved through the high level of integration in SmartBond TINY: A complete Bluetooth Low Energy system can be achieved with the addition of six tiny external passives, a crystal and power source. And to lower the barrier of entry, SmartBond TINY is also available in an easy-to-use tiny module incorporating all the needed components, making the addition of Bluetooth Low Energy to any application a simple drop-in.

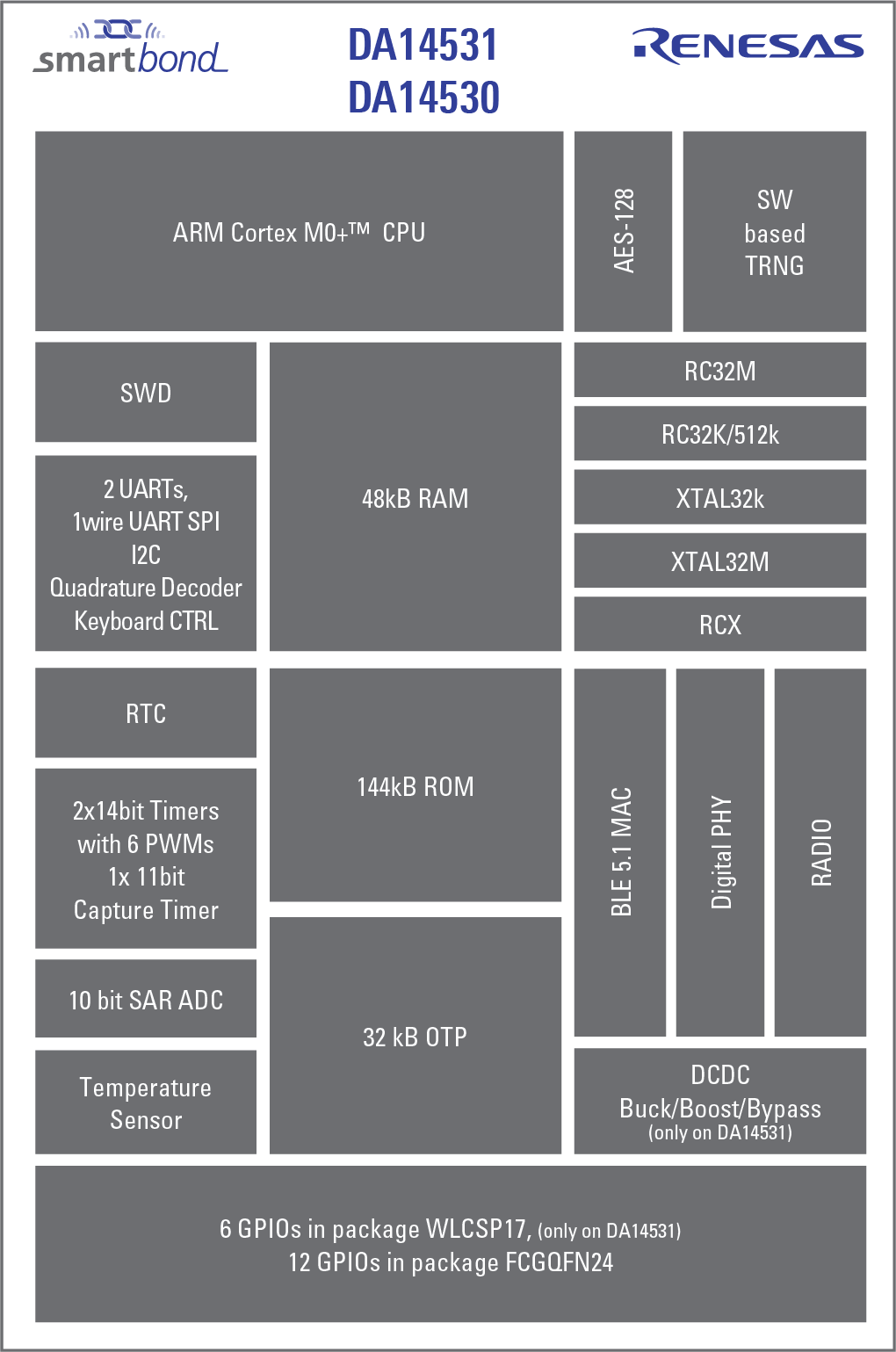

Record low hibernation and active power consumption ensure long operating and shelf life with even the tiniest, disposable batteries. Based on a powerful 32-bit Arm^® Cortex^®-M0+ with integrated memories and a complete set of analog and digital peripherals, SmartBond TINY is extremely power efficient, delivering a record score of 18300 on the latest EEMBC benchmark for IoT connectivity, IoTMark™.

The DA14531-01 variant of the DA14531 is optimized for peripheral only applications, provides around 25% additional user RAM memory for a typical BLE application compared to the DA14531-00 and is pin-to-pin compatible.

The DA14530 is pin-for-pin compatible with the DA14531 in a 2.2mm x 3.0mm FCGQFN24 package and provides cost savings by operating from an internal LDO, eliminating the cost of a DC/DC inductor.

Available in a tiny 2.0mm x 1.7mm package, the DA14531 is half the size of its predecessor, or any offering from other leading manufacturers. And, it is complemented by a flexible SDK supporting major compilers such as Keil and GCC out of the box.
