Air Velocity Sensor Pmod™ Board (Renesas Quick-Connect IoT)
Jump to Page Section:
Overview
Description

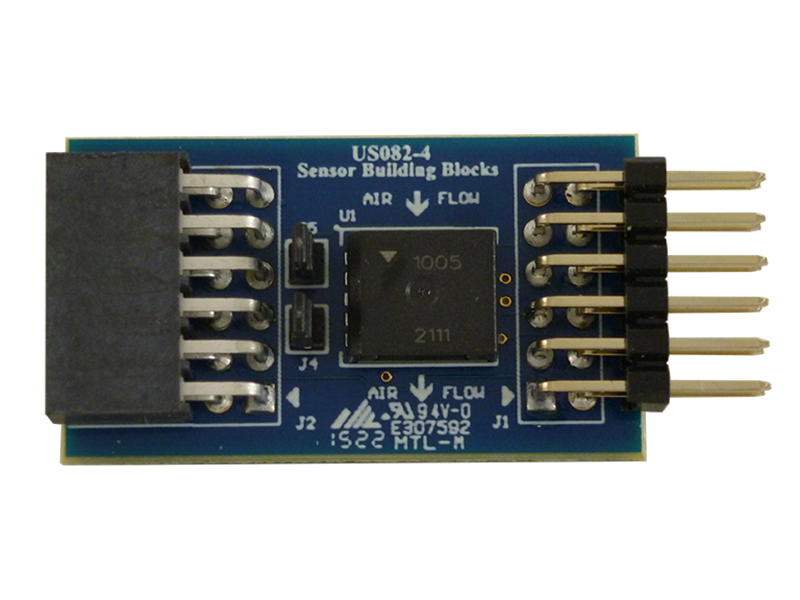

The US082-FS3000EVZ Board enables quick prototyping of the FS3000 mass air velocity sensor module for a custom system design. The board provides a standard PmodTM Type 6A (Extended I2C) connection for the on-board sensor to plug into any MCU evaluation kit with a matching connector.
The US082-FS3000EVZ features Pmod connectors on both sides of the board allowing additional Type 6/6A boards to be connected in a daisy-chained solution with multiple sensors on the same MCU Pmod connector. Thanks to the standard connector and software support, the US082-FS3000EVZ is ideal for Renesas’ Quick-Connect IoT to rapidly create an IoT system.
Features
- FS3000 sensor sample mounted:
- Thermo-transfer (calorimetric) principle utilizes MEMS thermocouples to measure flow, which provide an excellent signal-to-noise ratio
- Silicon-carbide coating protects from abrasive wear and water condensation
- Digital output with 12-bit resolution
- Resistant to vibration and pressure shock
- Standardized Type 6A PmodTM connector supports I2C Extended interface
- Dual connectors allow pass-through signals for daisy-chained solutions
Design & Development
Software & Tools
Software & Tools
| Quick-Connect IoT PlatformQuick-Connect IoT platform enables fast prototyping by providing compatible hardware and software building blocks. | Other Hardware | Renesas |
| Sensor Software Modules for Renesas MCU PlatformsMiddleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. | Sensor | Renesas |
| Quick-Connect StudioQuick-Connect Studio is an online, cloud-based design platform that enables users to graphically build hardware and software to quickly validate prototypes and accelerate product development. | Software Package | Renesas |
