HVPAK™ Programmable Mixed-Signal Matrix with Operating Voltage up to 26.4 V and up to 3 A current per output
The HVPAK combines mixed-signal logic and high-voltage H-/Half-bridge functionality in a tiny 2 mm x 3 mm QFN package. One-time programmable (OTP) non-volatile memory (NVM) stores user-defined solutions in the form of interconnections of internal logic, I/O pins, and macrocells.

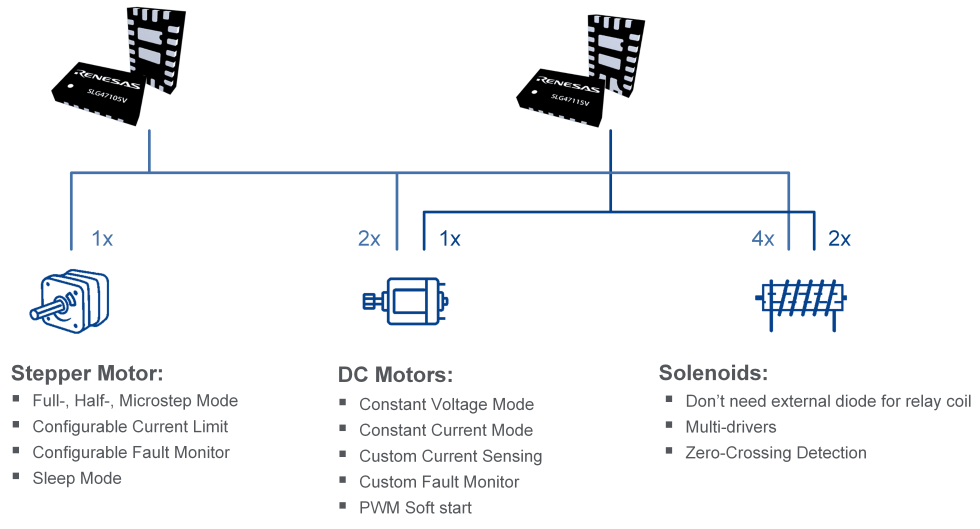

Get your motor running with HVPAK!
The HVPAK advanced PWM macrocells provide the ability to drive multiple motors with different PWM frequencies and duty cycles. Low idle current consumption in combination with a compact size further extends the field of possible applications. This highly versatile device allows a wide variety of mixed-signal functions to be designed alongside high-voltage capabilities within a tiny and thermally-efficient IC.
