The RZ/A3UL allows customers to achieve the full potential of a real-time operating system (RTOS) while leveraging the performance boost provided by the 64-bit Arm® Cortex®-A55 CPU core with a maximum operating frequency of 1 GHz. It integrates an Octal-SPI memory interface that facilitates simpler and more compact board designs. In addition, it includes versions that support a DDR3L/DDR4 memory interface to enable connection of high-speed DRAM.

Using an RTOS allows systems to start up instantly, in less than a second after boot-up. This feature is ideal for systems that require a fast response time such as industrial equipment, home appliances and office automation equipment with liquid crystal displays or control panels, as well as audio equipment and POS terminals.

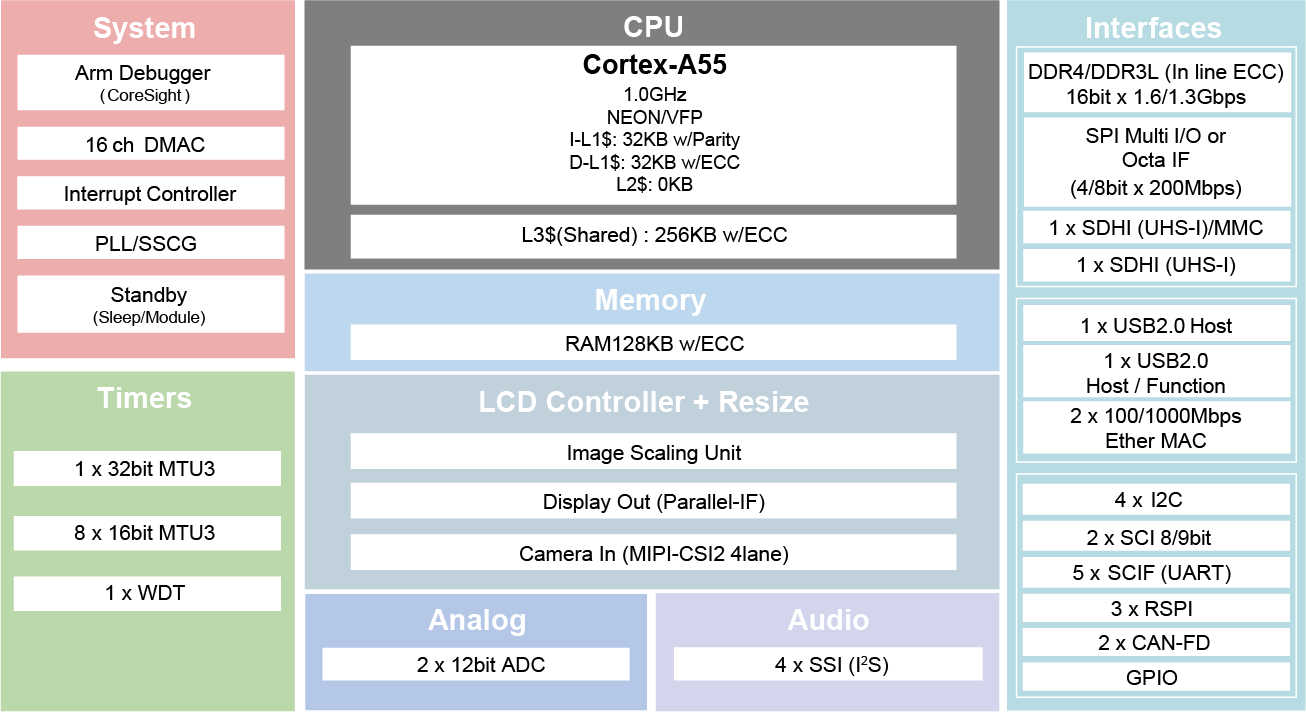

RZ/A3UL Block Diagram
RZ/A3UL Block Diagram
  • Cortex-A55 (Single)
  • LCD Controller
  • Camera interface (MIPI-CSI)
  • Display interface (Parallel-IF)
  • USB2.0 interface 2ch, SD interface 2ch
  • CAN interface (CAN-FD)
  • Gigabit Ethernet 2ch
  • Memory error detection / correction (ECC)
  • OctaRAM or DDR4/DDR3L memory interface
  • BGA package (13 x 13mm)
[RZ/A, RZ/T, RZ/N MPU] SEGGER J-Link/J-Trace/Flasher
[RZ/A, RZ/G, RZ/N, RZ/T MPU] Macronix Boot Code Integrity OTA Function
RTOS-Based RZ/A3UL HMI SMARC SoM
[RZ Family] iWave OSM LGA Module

Documentation

Title Type Date
RZ/A3UL Group User's Manual: Hardware
ZIP30.02 MB
Manual - Hardware
RZ/A3UL Easy Download Guide
PDF277 KB日本語
Guide
Getting Started with RZ/A Flexible Software Package V1.21
PDF7.88 MB
Quick Start Guide
Renesas Flexible Software Package (FSP) User's Manual ( Web Version - HTML )
0 KB
Manual - Software
Check List for Designing RZ/G2L, RZ/V2L, RZ/G2UL, RZ/Five and RZ/A3UL Circuit Boards
ZIP1.03 MB
Application Note
PCB Design Guideline for DDR4/DDR3L
ZIP2.85 MB
Application Note
RZ/A3UL Reference power consumption guide(typ.) for use case
PDF99 KB
Application Note
RZ/A3UL Thermal Management Guideline
PDF473 KB
Application Note
RZ/G2UL Type-1, RZ/A3UL and RZ/Five Pin Compatibility Guide
PDF449 KB
Application Note
Lifetime Guideline
PDF209 KB
Application Note
Mechanical Handling Guideline
PDF316 KB
Application Note
PCB Design Guidelines for MIPI-CSI, MIPI-DSI and USB2.0
PDF432 KB
Application Note
Mount Conditions Baking Conditions
PDF162 KB
Application Note
Mount Conditions Reflow Soldering Conditions
PDF165 KB
Application Note
RZ Family Brochure
PDF12.68 MB日本語
Brochure
Building Automation Brochure
PDF19.79 MB日本語
Brochure
Renesas RZ/A3UL Group
PDF413 KB日本語
Flyer
Introduction to Renesas RZ/A Series
PDF423 KB日本語
Flyer
Semiconductor Reliability Handbook
PDF14.70 MB日本語
General Reliability Literature
RZ/A3UL PCB verification guide for DDR4/DDR3L
ZIP117.80 MB
Guide
RZ/A3UL PCB verification guide for Core VDD
PDF303 KB
Guide
RZ SMARC Series Carrier Board User's Manual: Hardware
ZIP3.70 MB
Manual - Development Tools
RZ/G2UL, RZ/A3UL, RZ/Five SMARC Module Board User's Manual: Hardware
PDF3.77 MB
Manual - Development Tools
Semiconductor Package Mount Manual
PDF10.28 MB日本語, 简体中文
Other
R9A07G063UXXGBG Reliability Report
PDF410 KB
Product Reliability Report
e² studio 2023-04 Release Note
PDF2.82 MB
Release Note
e² studio 2023-01 Release Note
PDF3.02 MB
Release Note
e² studio 2022-10 Release Note
PDF2.64 MB
Release Note
User's Manual Hardware correction : Modification of maximum transfer rate and access timing value for RSPI
PDF371 KB
Technical Update
User's Manual Hardware correction : Supported interface for SD channel 1
PDF429 KB
Technical Update
User's Manual Hardware corrections for the division ratio setting of PLL1
PDF535 KB
Technical Update
[Upgrade to Version] e² studio Integrated Development Environment 2023-04
PDF182 KB日本語
Tool News - Release
[Upgrade to Version] e² studio Integrated Development Environment 2023-01
PDF129 KB日本語
Tool News - Release
[Upgrade to Version] e² studio Integrated Development Environment 2022-10
PDF154 KB日本語
Tool News - Release

Design & Development

Software & Tools

e² studio - information for RZ FamilyEclipse-based Renesas integrated development environment (IDE). IDE and Coding Tool Renesas
RZ/A3UL Software PackageThis RZ/A3UL software package helps speed up time to market. Downloads:
Getting Started with RZ/A Flexible Software Package V1.21Renesas Flexible Software Package (FSP) User's Manual ( Web Version - HTML )
 Software Package Renesas
RZ Smart ConfiguratorRZ Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins. Solution Toolkit Renesas
TES Guiliani'Prepaid by Renesas' TES Guiliani-Lite for RZ/A Solution Toolkit Renesas

Software Downloads

Title Type Date
RZ SMARC Series Carrier Board Design Data V4.00
ZIP20.06 MB
Board Description File
RZ/A3UL SMARC Module Board OCTAL Edition Design Data V1.00
ZIP20.67 MB
Board Description File
RZ/A3UL SMARC Module Board QSPI Edition Design Data V1.00
ZIP20.67 MB
Board Description File
RZ SMARC Series Carrier Board Design Data V4.01
ZIP21.68 MB
PCB Design Files

Boards & Kits

RZ/A3UL Evaluation Board Kit

RZ/A3UL-Evaluation-Board-Kit

Evaluation
Order Now

RZ/A3UL Evaluation Board Kit

This evaluation board kit is ideal for evaluating RZ/A3UL. The RZ/A3UL Evaluation Board Kit consists of a module board (SOM) and a carrier board. The module board...

Featured Documents:
RZ/G2UL, RZ/A3UL, RZ/Five SMARC Module Board User's Manual: Hardware
Getting Started with RZ/A Flexible Software Package V1.21

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Models

Title Type Date
RZ/A3UL BSDL
ZIP0 KB
Model - BSDL
RZ/A3UL IBIS
ZIP10.15 MB
Model - IBIS
RZ/A3UL PDN Model
ZIP1.48 MB
Model - Other

Product Options

    Processing table
    Part Number
    Series Name
    Main CPU
    Operating Freq (Max) (MHz)
    Bit Size
    Sub CPU
    RAM (KB)
    Lead Count (#)
    Memory Interface
    GPU
    Accelerator
    PCIe Revision
    CAN (ch)
    Ethernet
    USB
    I2C (#)
    I/O Ports
    Pkg. Type
    Temp. Range
    PLP
    Data Flash (KB)
    RTC
    DMA
    Timer
    ADC
    Human Machine Interface
    Supply Voltage (V)
    CPU
    Buy / Sample
    R9A07G063U01GBG#BC0
    play_circleActive
    memory
    view_in_ar
    		RZ/A Cortex-A55 1000 64 - 128 361 OctaRAM (8-bit) - - - 2 10/100M/1G x 1/2 ch USB2.0 x 2 ch (1H,1H/F/OTG) 4 82 LFBGA -40 to 85°C 2032 Oct 0 No Yes 16-bit x 8-ch 12-bit x 2-ch Display Function 2.97 - 3.63 Cortex-A55 x 1
    R9A07G063U01GBG#AC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 RZ/A Cortex-A55 1000 64 - 128 361 OctaRAM (8-bit) - - - 2 10/100M/1G x 1/2 ch USB2.0 x 2 ch (1H,1H/F/OTG) 4 82 LFBGA -40 to 85°C 2032 Oct 0 No Yes 16-bit x 8-ch 12-bit x 2-ch Display Function 2.97 - 3.63 Cortex-A55 x 1 Get Samples,
    R9A07G063U02GBG#BC0
    play_circleActive
    memory
    view_in_ar
    		RZ/A Cortex-A55 1000 64 - 128 361 DDR3L-1333, DDR4-1600 (16-bit) - - - 2 10/100M/1G x 1/2 ch USB2.0 x 2 ch (1H,1H/F/OTG) 4 82 LFBGA -40 to 85°C 2032 Oct 0 No Yes 16-bit x 8-ch 12-bit x 2-ch Display Function 2.97 - 3.63 Cortex-A55 x 1
    R9A07G063U02GBG#AC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 RZ/A Cortex-A55 1000 64 - 128 361 DDR3L-1333, DDR4-1600 (16-bit) - - - 2 10/100M/1G x 1/2 ch USB2.0 x 2 ch (1H,1H/F/OTG) 4 82 LFBGA -40 to 85°C 2032 Oct 0 No Yes 16-bit x 8-ch 12-bit x 2-ch Display Function 2.97 - 3.63 Cortex-A55 x 1 Get Samples,
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
