16-lane, 8 Gbps, PCIe 3.0 Retimer
Jump to Page Section:
Overview
Description
The IDT 89HT0832P 16-lane, 8Gbps PCIe 3.0 Retimer offers top analog performance, advanced digital processing and diagnostic features. It can correct total jitter (Rj and Dj), with operating parameters determined automatically by Link Equalization Procedure. The 89HT0832P is optimized for demanding 8Gbps applications in computing, storage, and communications.
Features
- 16-lane PCIe 3.0 signal Retimer
- 8.0Gbps per channel operation
- Equalization procedure, phases 0,1,2,3
- CTLE and DFE receiver equalization corrects Rj and Dj
- Large swing transmitter supports boost, pre-shoot and de-emphasis
- ASPM power savings - per lane
- I2C master/slave & JTAG CSR interface
- On-die scope, pattern generator/checker
- 89KTT0832P Evaluation Board available
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.23 MB
|
Datasheet
|
||
PDF583 KB
|
Application Note
|
||
PDF460 KB
|
Application Note
|
||
ZIP9 KB
|
Carrier/Package
|
||
PDF112 KB
|
Device Errata
|
||
PDF385 KB
|
Manual - Hardware
|
||
PDF1.85 MB
|
Manual - Hardware
|
||
PDF254 KB
|
Other
|
||
ZIP1.91 MB
|
Other
|
||
PDF284 KB
|
Other
|
||
PDF422 KB
|
Overview
|
||
PDF1.30 MB
|
Product Brief
|
||
PDF2.67 MB
|
Product Brief
|
||
PDF100 KB
|
Product Change Notice
|
||
PDF113 KB
|
Product Change Notice
|
||
PDF513 KB
|
Product Change Notice
|
||
ZIP2.25 MB
|
Schematic
|
||
PDF167 KB
|
Schematic
|
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Evaluation Board for 89HT0832P Retimer 16-lane, 8Gbps, PCIe 3.0
The 89KTT0832P retimer evaluation board is designed to enable quick in-system testing of Renesas’s 16-lane, 8Gbps, PCIe 3.0 Retimer IC product.
This board features a...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Pkg. Type |
Lead Count (#) |
Pitch (mm) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|---|---|---|---|---|---|---|---|
| FCBGA | 345 | 1 | C | Yes | Tray | Get Samples, | |
| FCBGA | 345 | 1 | C | Yes | Reel | ||
| FCBGA | 345 | 1 | I | Yes | Tray | Get Samples, | |
| FCBGA | 345 | 1 | I | Yes | Reel | ||
| FCBGA | 345 | 0.8 | C | Yes | Tray | Get Samples, | |
| FCBGA | 345 | 0.8 | C | Yes | Reel | ||
| FCBGA | 345 | 0.8 | I | Yes | Tray | Get Samples, | |
| FCBGA | 345 | 0.8 | I | Yes | Reel | ||
| FCBGA | 345 | 0.8 | C | Yes | Tray | Get Samples, | |
| FCBGA | 345 | 0.8 | C | Yes | Reel | ||
| FCBGA | 345 | 0.8 | I | Yes | Tray | Get Samples, | |
| FCBGA | 345 | 0.8 | I | Yes | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
89HT0832P 16-lane 8 Gbps PCIe 3.0 Retimer by IDT
Description
The IDT 89HT0832P is the industry's first 32-channel (16-lane) PCI Express 3.0 retimer capable of 8 Gbps-per-channel transfers, providing a total of 256 Gbps of communication bandwidth for data-intensive applications. The 89HT0832P is protocol-aware to support the PCIe 3.0-compliant equalization procedure for receiver and transmitter configuration, which eases system design-in complexity, and insures reliable low bit-error-rate (BER) operation with any PCI Express 3.0-compliant device, expansion card, or host bus adapter (HBA). The Retimer's receivers include a high-performance continuous-time linear equalizer (CTLE) analog front-end followed by a five-tap decision feedback equalizer (DFE) and clock-data-recovery (CDR) circuit. This high-performance input with dynamic optimization can recover poor quality input signals, correct random and deterministic jitter, and boost transmit amplitude -- enabling communication over long cables, long traces, or system backplanes. Presented by Ken Curt, Product manager at IDT. Learn more about IDT's signal integrity products at www.idt.com/go/SIP.
Transcript
Hi, my name is Ken Curt. I'm a product manager at Integrated Device Technology with responsibilities for signal integrity products. Today I'd like to introduce our new 16-lane, eight gigabit per second PCI express Gen3 re-timer. The 89HT0832P signal conditioning IC.
A gigabyte per second signal can degrade quickly in to noise as it travels down a wire. A noisy signal can result in bad communication, errors, and degraded system performance. Signal conditioners, such as IDT re-timers, are designed for the purpose of restoring a poor-input signal back into a high quality re-transmitted signal for better data communications.
Improved signal quality results in improved system performance because there are fewer lost packets and re-tries. Better signal quality improves long-term system stability and reliability, due to better signal amplitude and timing margins. Signal conditioners enable longer signaling distances and provide other advantages, too.

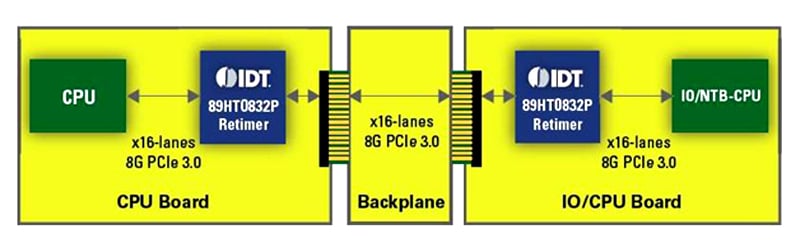

IDT’s T0832 retimer has 16 lanes, or 32 serial differential channels, each operating at eight gigabits per second. The device is targeted for applications in high-performance computing, rack and blade servers, storage systems, desktop work stations, and telecom systems.
The IDT 0832 retimer implements numerous state-of-the-art features around a CDR and SERDES core. Equalization is an essential function of any signal conditioner, and the 0832 implements a receiver stage with continuous time linear equalizer, followed by a five-tap decision feedback equalizer. The transmit stage implements subfinite impulse response filter to provide the new pre-sheet and boost levels as defined in the PCI3 standard. Properly configuring a signal conditioner for receive and transmit equalization is probably the most challenging part of any design. Newly defined in the PCI 3.0 standard is an equalization procedure which automatically adjusts the receivers and transmitters for a low, 10-12 bit error rates. IDT’s retimers fully implement this procedure on both upstream and downstream ports. The 0832 retimer provides automatic power-on calibration of key signals, timing, and amplitudes to provide accurate operation for the best signal quality. The T0832 retimer provides instrumentation features, including an on-die oscilloscope and pattern generator checker, with built-in and user-defined patterns. The 16-lane architecture can support multiple independent links of four or eight lanes.
For product support, IDT offers an evaluation board that plugs into a PCI slot on a typical server or workstation, a Windows-based GUI for configuration register access, and the bit error contour or eye diagram utility, reference schematics, simulation models, and layout examples are available too, of course.
To summarize the benefits of the IDT PCI 3.0 retimer, they include one, full compliance to the new automatic equalization procedure, ensuring a very low bit error rating and high performance. Two, excellent jitter performance, correcting both random and deterministic jitter, for the best signal integrity over longer traces. Three, automatic calibration that assures each device operates optimally in any environment, providing the best margins for long-term reliability. Four, enhanced features, such as the on-die oscilloscope, which facilitates system design and can help with monitoring, even after system deployment. And five, automatic power reduction, which minimizes power use whenever possible, on a per-lane basis.
IDT is the leader in mixed analog and digital ICs, with established expertise in PCI Express, in timing, in SERDES, and signal integrity. IDT provides expert technical support and assistance with your development efforts. IDT offers a broad portfolio of ICs for many essential system functions, developed over 30 years as a supplier of quality semi-conductor devices.
That concludes my presentation today. Thank you for your time and attention. Please contact IDT if you have any following questions.
