150mA Wide Input Range Ultra Low Quiescent Current Linear Regulator
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

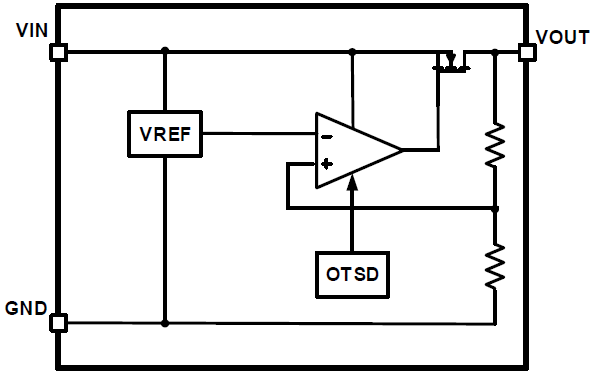

The RAA214401 is a linear regulator that operates with a very wide input voltage range at a fixed output at 3.3V and up to 150mA of output current. With an ultra low quiescent current, it is suitable for always-on and keep-alive applications. The device operates with a wide input voltage range (4.5V to 40V at 10mA load) with excellent line and load regulation. It has integrated fault protections such as Over-Temperature Shutdown (OTSD) and short-circuit current limit. The output voltage of the device is well regulated across temperature and the entire operating range of the input voltage and load. It is fixed with an internal resistor network between the output pin and ground. The RAA214401 is available in a SOT23 package.
Features
- Wide input voltage range (4.5V to 40V at 10mA load)
- Ultra low 3.6μA quiescent current
- High output voltage accuracy
- Excellent line and load regulation
- Stable with 2.2μF – 47μF MLCC output capacitor
- Integrated fault protections including thermal shutdown and current limit
- Available in the compact and cost-effective SOT23 package
Applications
Applications
- Always-on battery-powered equipment
- MCU standby power supply
- Electric meters
- Laptop computers and tablets
- Portable modules and appliances
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Ultra-Low Quiescent Current Linear Regulator Demo Board with 4.5V to 40V Input Range, 3.3V 150mA Output
The RTKA214401DR0000BU demonstration board provides a simple and compact platform for demonstrating the RAA214401 40V, 150mA low-dropout (LDO) linear regulator with...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
RAA2144014GP3#JA0 Active Samples Available |
SOT23 | Reel | 3000 | Get Samples, |
