航空宇宙および苛酷環境用IC

概要

The Intersil HCTS20MS is a Radiation Hardened Dual 4-Input NAND Gate. A low on any input forces the output to a High state. The HCTS20MS utilizes advanced CMOS/SOS technology to achieve high-speed operation. This device is a member of radiation hardened, high-speed, CMOS/SOS Logic Family. The HCTS20MS is supplied in a 14 lead Ceramic flatpack (K suffix) or a SBDIP Package (D suffix).

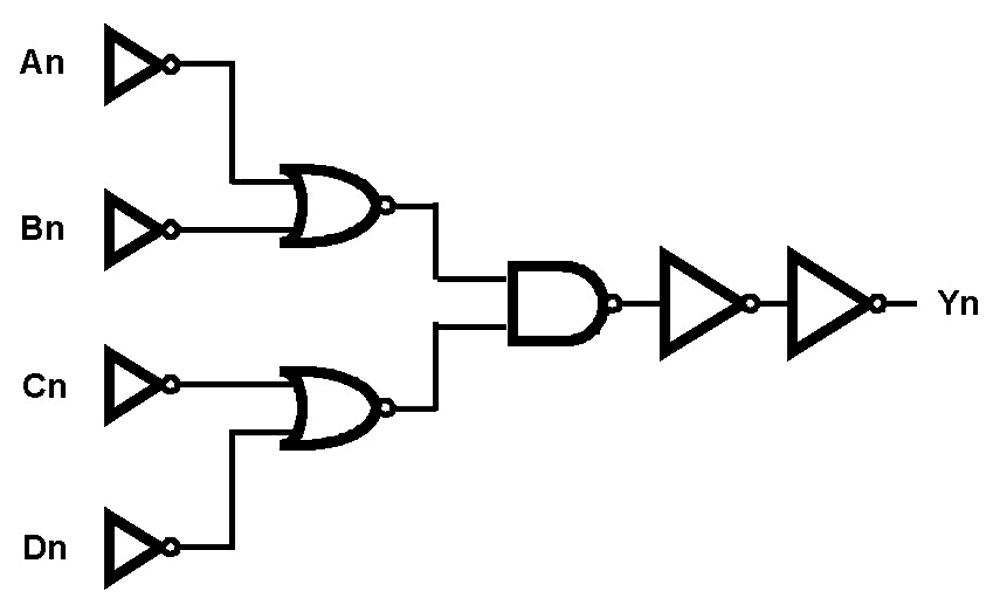

HCTS20MS Functional Diagram
HCTS20MS Functional Diagram
  • 3 Micron Radiation Hardened SOS CMOS
  • Total Dose 200K RAD (Si)
  • SEP Effective LET No Upsets: >100 MEV-cm2/mg
  • Single Event Upset (SEU) Immunity < 2 x 10-9 Errors/Bit-Day (Typ)
  • Dose Rate Survivability: >1 x 1012 RAD (Si)/s
  • Dose Rate Upset >1010 RAD (Si)/s 20ns Pulse
  • Latch-Up Free Under Any Conditions
  • Military Temperature Range: -55°C to +125°C
  • Significant Power Reduction Compared to LSTTL ICs
  • DC Operating Voltage Range: 4.5V to 5.5V
  • LSTTL Input Compatibility
  • VIL = 0.8V Max
  • VIH = VCC/2 Min
  • Input Current Levels Ii ≤ 5µA at VOL, VOH

ドキュメント

タイトル
分類 		日付
HCTS20MS Datasheet
PDF 369 KB 		データシート
Intersil Commercial Lab Services
PDF 467 KB 		カタログ
Intersil Space Products Brochure
PDF 4.85 MB 		カタログ
PIN19011 - Price Increase for the Listed Renesas Electronics America (REA) Radiation Hardened Space Products
PDF 360 KB 		Price Increase Notice
Standard Microcircuit Drawing 5962-95733 (HCTS20MS)
その他資料
Wafer by Wafer Low Dose Rate Acceptance White Paper
PDF 533 KB 		ホワイトペーパー
PA11003 - Packing Method Change for Intersil TO-xx Metal Can and Flat Pack Packaged Products
PDF 499 KB 		Product Advisory
PCN10123 - Alternate Die Attach Material for Assembly of Intersil Hermetic Packaged Products - Intersil Palm Bay, FL. (ISP)
PDF 230 KB 		製品変更通知
AN9867: End of Life Derating: A Necessity or Overkill
PDF 338 KB 		アプリケーションノート
AN9654: Use of Life Tested Parts
PDF 224 KB 		アプリケーションノート
10 items

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    DLA SMD
    ご購入 / サンプル
    型名
    HCTS20KMSR
    play_circleアクティブ
    memory
    view_in_ar
    		CFP Tray 25 5962R9573301VXC
