The ZSSC415xKIT Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSSC4151 Sensor Signal Conditioner (SSC) IC. The user's PC can communicate with the ZSSC4151 IC mounted on the ZSSC415x/6x/7x SSC Evaluation Board via the SSC Communication Board through a USB connection. The Evaluation Kit Software is available on-line for free download.

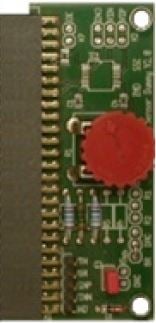

The Evaluation Board can connect to the user's sensor or to the SSC Sensor Replacement Board (SRB). The SRB provides a replacement for an actual sensor and can be used for the first step of calibration or a dry-run calibration. On the SRB, the simulated resistive sensor signal is controlled by a potentiometer. The kit also includes the ZSSC415x Test-PCB, which is a small populated board including a ZSSC4151 QFN sample and the required external components already mounted for facilitating user prototypes.

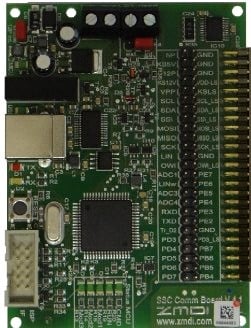

For further information and support for the SSC Communication Board, visit the SSC-CB product page.

Boards can also be ordered separately. To enable product comparisons, this modular kit is compatible with other select IDT devices. Contact your local sales representative for more information.

特長

  • ZSSC415x/6x/7x Evaluation Board with a ZSSC4151 sample mounted

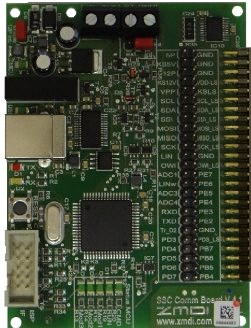

  • SSC Communication Board
  • SSC sensor Replacement Board
  • ZSSC415x Test-PCB
  • 5 additional ZSSC4151 QFN samples
    • Tweezers
    • USB cable

製品選択

製品名 Part Status 購入/サンプル
ZSSC415XEVKV1P5
Active
Availability
ZSSC415XEVKV1P6
Active
Availability

ドキュメント&ダウンロード

タイトル language 分類 形式 サイズ 日付
ユーザーガイド、マニュアル
ZSSC4151C SSC Evaluation Kit User Manual マニュアル-評価ボード PDF 833 KB
ZSSC41xx SSC Evaluation Board Reference Guide マニュアル PDF 1.43 MB
ZSSC4151 Evaluation Kit Start-up Guide マニュアル-ソフトウェア PDF 844 KB
ZSSC4151 Evaluation Kit Hardware Manual マニュアル-評価ボード PDF 1.32 MB
ダウンロード
ZSSC4151C Eval Software Rev1.1.8 ソフトウェア ZIP 12.03 MB
ZSSC4151C NVM Memory File ソフトウェア ZIP 1 KB
ZSSC4151 Evaluation Kit Software Rev 1.0.17.0 ソフトウェア ZIP 23.92 MB
ZSSC4151 GUI Configuration and NVM Memory Files ソフトウェア ZIP 885 KB
