The ZSSC313x Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSSC313x Sensor Signal Conditioner (SSC) ICs, including the ZSSC3131, ZSSC3135, ZSSC3136 and ZSSC3138. The user's PC can communicate via the SSC Communication Board with multiple ZSSC313x ICs (DUTs) mounted on either the user's modules or ZSSC313x Mass Calibration Reference Boards, which are connected through the Mass Calibration Board (MCB). Each MCB allows connection of up to 24 DUTs. The system can operate with up to 8 MCBs, allowing connection of up to 192 DUTs. The Evaluation Kit Software is available on-line for free download.

For further information and support for the SSC Communication Board, visit the SSC-CB product page.

Additional boards can be ordered separately. To enable product comparisons, this modular kit is compatible with other select IDT devices. Contact your local sales representative for more information.

特長

  • 4 Mass Calibration Boards

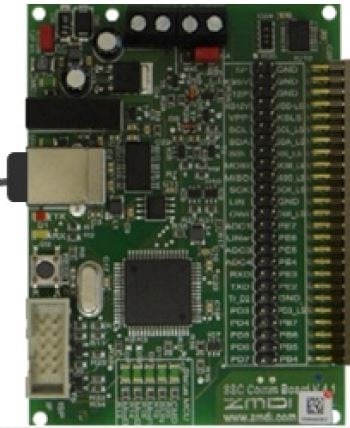

  • SSC Communication Board
  • 4 ZSSC313x Mass Calibration Reference Boards with 1 sample ZSSC313x mounted
  • USB Cable

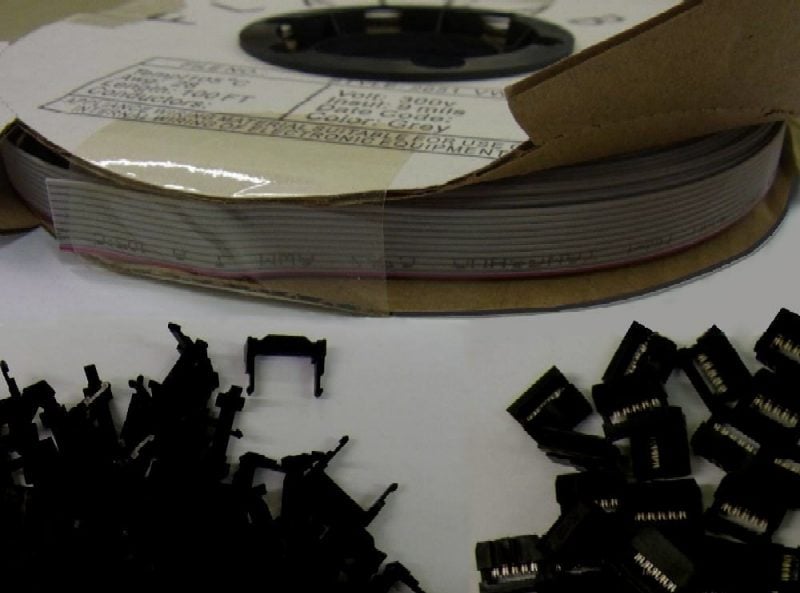

  • SSC Flat Cable: 30m of 10-wire flat cable and 100 connectors

製品選択

製品名 Part Status 購入/サンプル
ZSSC313xMCREFBV1P0
Active
Availability
ZSSC313xMCSV1P1
Active
Availability

ドキュメント&ダウンロード

タイトル language 分類 形式 サイズ 日付
データシート
SSC Mass Calibration Board (SSC-MCB) Datasheet データシート PDF 1.79 MB
SSC Mass Calibration System Feature Sheet ショートフォーム(簡略版) PDF 280 KB
ダウンロード
ZSSC3131, ZSSC3135, ZSSC3136 and ZSSC3138 Evaluation Software Rev. 2.2.2.5056 ソフトウェア ZIP 931 KB
