概要
Description

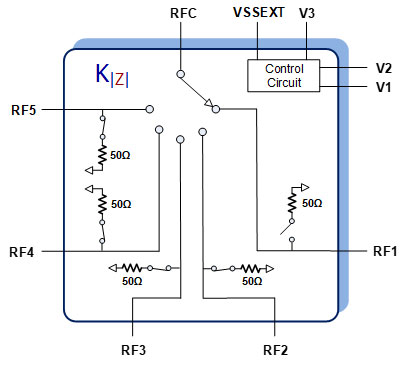

The F2955 is a high reliability, low insertion loss, 50Ω SP5T absorptive RF switch designed for a multitude of RF applications, including wireless communications. This device covers a broad frequency range from 50MHz to 8000MHz. In addition to providing low insertion loss, the F2955 also delivers excellent linearity and isolation performance while providing a 50Ω termination to the unused RF input ports. The F2955 also includes a patent-pending constant impedance (K|z|™) feature. K|z| improves system hot switching ruggedness, minimizes LO pulling in VCOs, and reduces phase and amplitude variations in distribution networks. It is also ideal for dynamic switching/selection between two or more amplifiers while avoiding damage to upstream/downstream sensitive devices, such as power amplifiers (PAs) and analog-to-digital converters (ADCs).

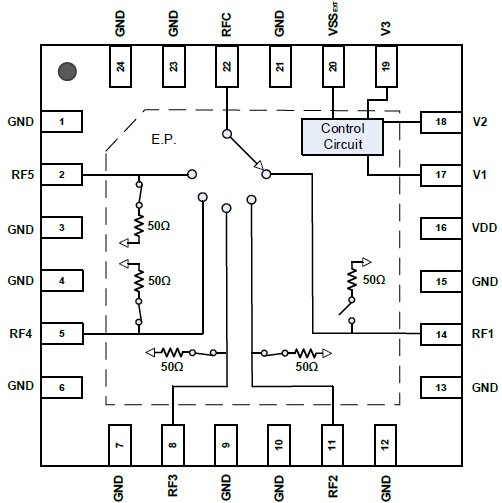

The F2955 uses a single positive supply voltage supporting three logic control pins using either 3.3V or 1.8V control logic. Connecting a negative voltage to pin 20 disables the internal negative voltage generator and becomes the negative supply.
特長
- Five symmetric, absorptive RF ports
- High isolation: 49dB at 4000MHz
- Low insertion loss: 1.1dB at 4000MHz
- High linearity:
- IIP2 of 114dBm at 2000MHz
- IIP3 of 60.5dBm at 4000MHz
- High operating power handling:
- 33dBm CW on selected RF port
- 27dBm on terminated ports
- Single 2.7V to 5.5V supply voltage
- External negative supply option
- 3.3V and 1.8V compatible control logic
- Operating temperature: -40°C to +105°C
- 4 × 4 mm 24-VFQFPN package
- Pin compatible with competitors
設計・開発
ボード＆キット
ボード＆キット
Evaluation board for the F2955 High Reliability SP5T RF Switch
The F2955EVB is a fully populated evaluation board that allows the customer to easily evaluate the F2955 High Reliability SP5T RF Switch.
