Description
The SLG46811 device offers an I2C serial communications bus and a new, multichannel sampling analog comparator, making SLG46811 the smallest GreenPAK that can sample up to four analog channels.
The SLG46811 offers digital macrocells, including shift registers and a long pattern generator block, that enable the device to generate master transactions for SPI, I2C, UART, and 1-wire. Also, small size and energy efficiency make the device ideal for a wide set of applications.
特長
- Read Back Protection (Read Lock)
- Power Supply: 2.5 V (±8 %) to 5 V (±10 %)
- Operating Temperature Range: -40°C to 85°C
- RoHS Compliant / Halogen-Free

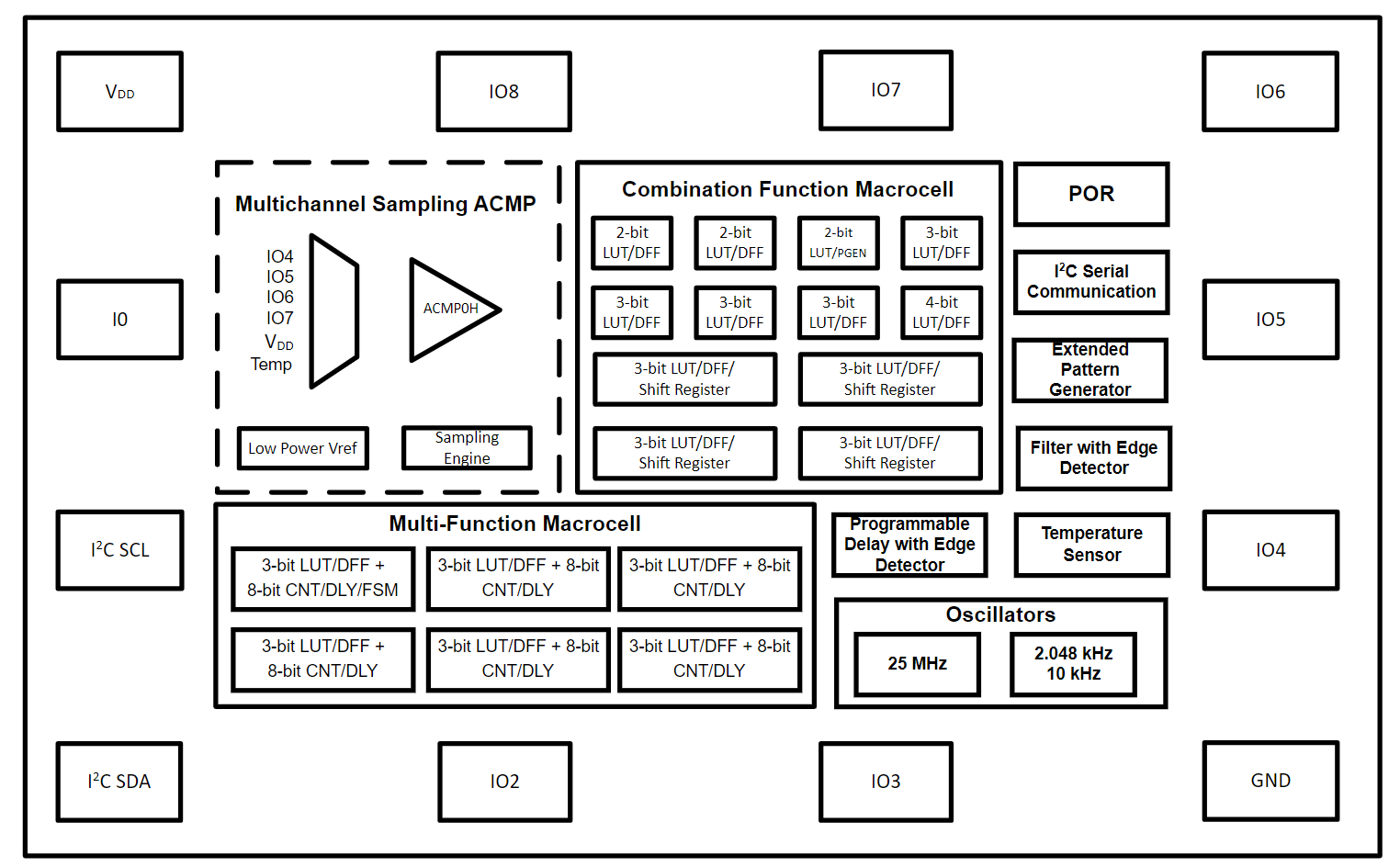

Macrocells Overview
- Multichannel Sampling Analog Comparator (MS ACMP):
- Sampling up to Four Analog Channels;
- Selectable Voltage Reference for Each Channel;
- Different Sampling Scenarios;
- Synchronous or Asynchronous Result Appearance
- Integrated Voltage Reference
- Twelve Combination Function Macrocells:
- Two 2-Bit LUTs or (DFF/LATCH) Macrocells;
- One Selectable Programmable Pattern Generator or 2-bit LUT
- Four 3-Bit LUTs or (DFF/LATCH) with Set/Reset
- Four Selectable DFF/LATCH or 3-bit LUTs or Shift Registers
- One 4-Bit LUT or (DFF/LATCH) with Set/Reset Macrocell
- Six Multi-Function Macrocells:
- Five Selectable DFF/Latch or 3-bit LUTs + 8-bit Delay/Counters;
- One Selectable DFF/Latch or 3-bit LUT + 8-bit Delay/Counter/FSM;
- Extended Pattern Generator:
- Up to 8 Parallel Outputs;
- 92 bytes Pattern Stored in the NVM
- I²C Communication:
- Programmable Delay with Edge Detector Output;
- Deglitch Filter or Edge Detector;
- Two Oscillators (OSC):
- 2.048/10 kHz Oscillator;
- 25 MHz Oscillator;
- Analog Temperature Sensor;
- Power-On Reset (POR) with CRC.
アプリケーション
アプリケーション
- Smartphones and Fitness Bands
- Portable and Handhald Electronics
- Smart Meters
- Home Appliances and IoT
- Personal Computers and Servers
- PC Peripherals
- Data Communications Equipment
- Robotics
- Toys
- Applications with Communication Interfaces, Where GreenPAK Can be Used as a Simple master Device
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Go Configure™ Software HubGo Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices. | Software Package | ルネサス |
ボード＆キット
ボード＆キット
GreenPAK SLG46811 Development Kit with Socket Adapter
The SLG46811V-SKT includes the SLG4SA12-16x16 socket adapter and 50 SLG46811V samples.
GreenPAK SLG46811 20-pin DIP Prototyping Board
The SLG46811V-DIP 20-pin DIP Prototyping Board is perfect for breadboarding and fast prototypes. It requires the GreenPAK DIP Adapter (SLG4SA-DIP) to use it with the...
GreenPAK DIP Adapter for GreenPAK Advanced Development Board
GreenPAK DIP Adapter for GreenPAK Advanced Development Board. Allows the use of the SLG46xxxV-DIP Proto boards with the GreenPAK Advanced Development Board. Acts as the...
GreenPAK先行開発ボード
GreenPAKデバイスの完全なプログラミング、エミュレーション、およびテスト機能を提供します。SLG46xxxX-SKTソケットキットに使用します。GreenPAK Designerソフトウェアと併用することで、GreenPAK Advanced Development Boardは以下のことを可能にします...
GreenPAK DIP Development Board
The SLG4DVKDIP is perfect for breadboarding and fast prototyping. Working in tandem with the GreenPAK Designer software, GreenPAK DIP Development Board allows designers...
GreenPAK Serial Debugger Board (GSD)
GreenPAK Serial Debugger (GSD) device can be used for programming GreenPAK products with multiple-time Non-Volatile Memory (NVM) or for configuring the interconnect...
