The SLG59M1495V is designed for load switching applications. The part comes with one 80 mΩ 1.0 A‑rated MOSFET controlled by a single ON control pin. The MOSFET’s ramp rate is adjustable depending on the input current level of the ON pin. The product is packaged in an ultra‑small 1.0 mm x 1.0 mm package.

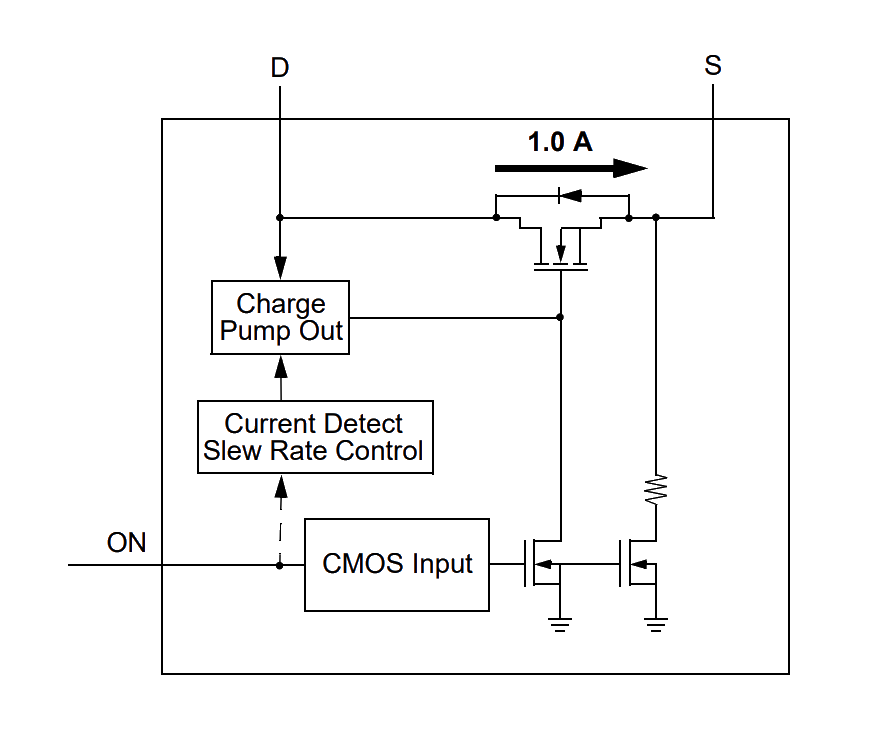

SLG59M1495V Diagram
SLG59M1495V Diagram
  • Optimized for smartphone, notebook/tablet PC applications
  • 80 mΩ RDSON while supporting 1.0 A
  • Input voltage range: 2.5 V ≤ VD ≤ 5.5 V
  • Output voltage slew-rate control by resistor
  • Over-temperature protection
  • Output discharge circuitry
  • Sleep mode current (IDDOFF) in low µA range
ロボットの手足用サーボモータ

ドキュメント

タイトル 分類 日付
SLG59M1495V Datasheet
PDF328 KB
データシート
AN-CM-272 Extending the GreenFET Load Switch Maximum Operating Current
PDF911 KB
アプリケーションノート
SLG59M1495V Layout Guide
PDF202 KB
その他資料

設計・開発

ボード＆キット

SLG59M1495V-EVB

SLG59M1495V-EVB

Evaluation
ご購入

SLG59M1495V Evaluation Board

The SLG59M1495V-EVB board evaluates the SLG59M1495V GreenFET, Single N-Channel, Load Switch.
