概要
説明

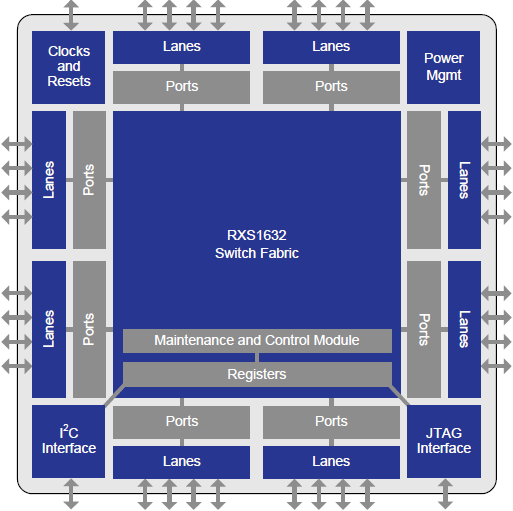

The IDT RXS1632 is a RapidIO, multi-port switch that is compliant to the Serial RapidIO Interconnect Specification (Revision 3.2). The switch fabric supplies non-blocking bandwidth of 400 Gbps for up to 16 ports and 32 lanes. The packet transfer performance through the fabric is optimized through buffer management schemes and configurable queuing modes. The RapidIO switch supports standard RapidIO routing functionality, including unicast and up to 256 multicast groups.
The RXS1632 supports flow control based on eight separate priorities that contains a queue aging function to ensure that high priority traffic does not starve low priority traffic under congestion. The device provides extensive accessibility to create an optimal configuration by allowing access to all features of the switch via any port.
Learn more: IDT RapidIO Development Systems
特長
- Compliant to Serial RapidIO 3.2 Specification (10xN, Gen 3)
- 32 lanes, with up to 8x4, 16x2, 16x1 port configurations
- Full-duplex 400 Gbps non-blocking bandwidth
- Port-to-port latency approaching 100 ns
- 1.25, 2.5, 3.125, 5.0, 6.25, 10.3125, and 12.5 Gbaud
- Supports any topology for a highly scalable system
- SerDes supports long-reach (100cm + 2 connectors)
- 29 x 29 FCBGA
製品比較

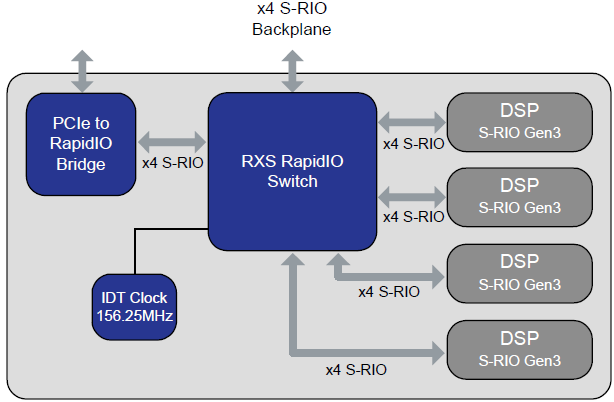

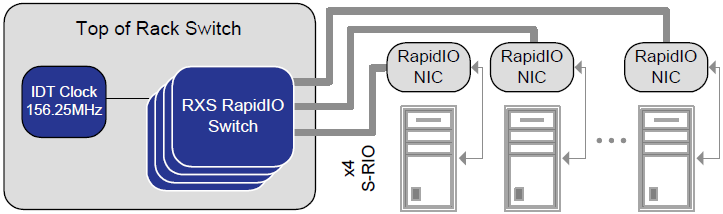

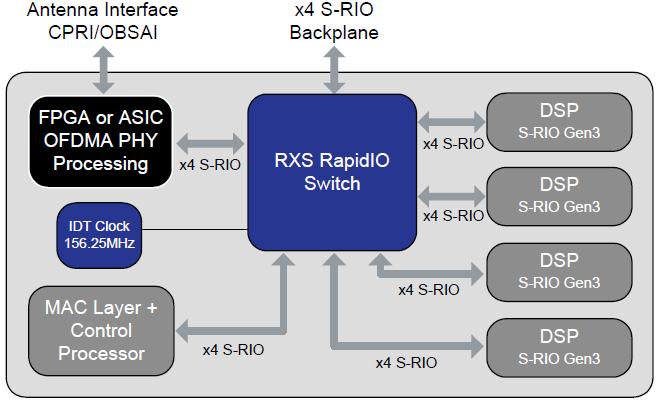

アプリケーション
ドキュメント
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日付 |
| データシート | PDF 991 KB | |
| マニュアル－ハードウェア | PDF 7.05 MB | |
| 概要 | PDF 603 KB | |
| アプリケーションノート | PDF 183 KB | |
| 概要 | PDF 991 KB | |
| 製品概要 | PDF 824 KB | |
| マニュアル－ハードウェア | PDF 2.07 MB | |
| 回路図 | PDF 2.58 MB | |
| 製品概要 | PDF 50 KB | |
| Carrier/Package | TXT 9 KB | |
| その他資料 | PDF 12 KB | |
11 items
|
||
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
| FCBGA | 784 | I | Yes | Tray | サンプルを入手, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
サポート
ビデオ&トレーニング
RapidIO 10xN (Gen 3) Switches by IDT
IDT's RapidIO 10xN (Gen 3) compliant devices offer up to 50Gbps port speeds and 600Gbps non-blocking aggregate bandwidth and are backward compatible with previous generations. At 100ns latency, these switches offer performance to support 4G LTE-Advanced and 5G mobile infrastructure and real-time mobile edge & high performance computing. With superior energy efficiency and fault tolerance the RXS family is also well suited for imaging, aerospace, industrial control, and defense applications. The new family is composed of the RXS2448, with 24 ports and 48 lanes, and the RXS1632, with 16 ports and 32 lanes.
Presented by Trevor Hiatt, Principal Product Manager, Integrated Device Technology, Inc. Learn more at http://www.idt.com/go/rapidIO.
TRANSCRIPT
Hi. I'm Trevor Hiatt, and I'm happy to introduce IDT's next generation RapidIO switches, the RXS family. Supporting the latest 10xN RapidIO standard, these chips are extremely low latency and high bandwidth, and are designed to take on the challenges of the coming 5G mobile network, as well as other compute intensive applications. IDT introduced our prior generation of RapidIO switches in 2010, and since then they've become ubiquitous in communications infrastructure, with virtually every 4G phone call and download around the world going through our chips.
They're also being used for mobile edge and high-performance computing and data analytics. That's because RapidIO delivers the ultra-low latency needed to efficiently move and manage vast volumes of data. With our new family of RapidIO switches, ultra-fast just got a whole lot faster. We're talking about port to port latency approaching 100 nanoseconds, and a flexible non-blocking fabric with switching performance of 600 gigabits per second. That's greater than twice the performance of the prior generation, exceeding the bandwidth requirements of the 10xN standard, and all with better energy efficiency than our prior generation and competing solutions.
In addition to being optimized for 5G infrastructure, the 10xN switches are ideal for 4G LTE-Advanced systems, as well as a wide variety of markets where latency creates a bottleneck to achieving the potential performance of a system. These markets include mobile infrastructure, data center, aerospace, industrial control, and defense. The new family is comprised of the RXS2448, with 24 ports and 48 lanes, and the RXS1632 with 16 ports and 32 lanes. They're backward compatible with existing RapidIO ecosystems, protecting previous hardware and software investments. Leveraging this compatibility can accelerate a product's time to market.
There's lots more information about the RXS switches on the IDT website at www.idt.com/go/rapidio. Thanks for watching.
