±15kV ESD Protected, +3V To +5.5V, 1mA, 250kbps, RS-232 Transceivers With Enhanced Automatic Powerdown
ページセクションへ移動：
概要
説明

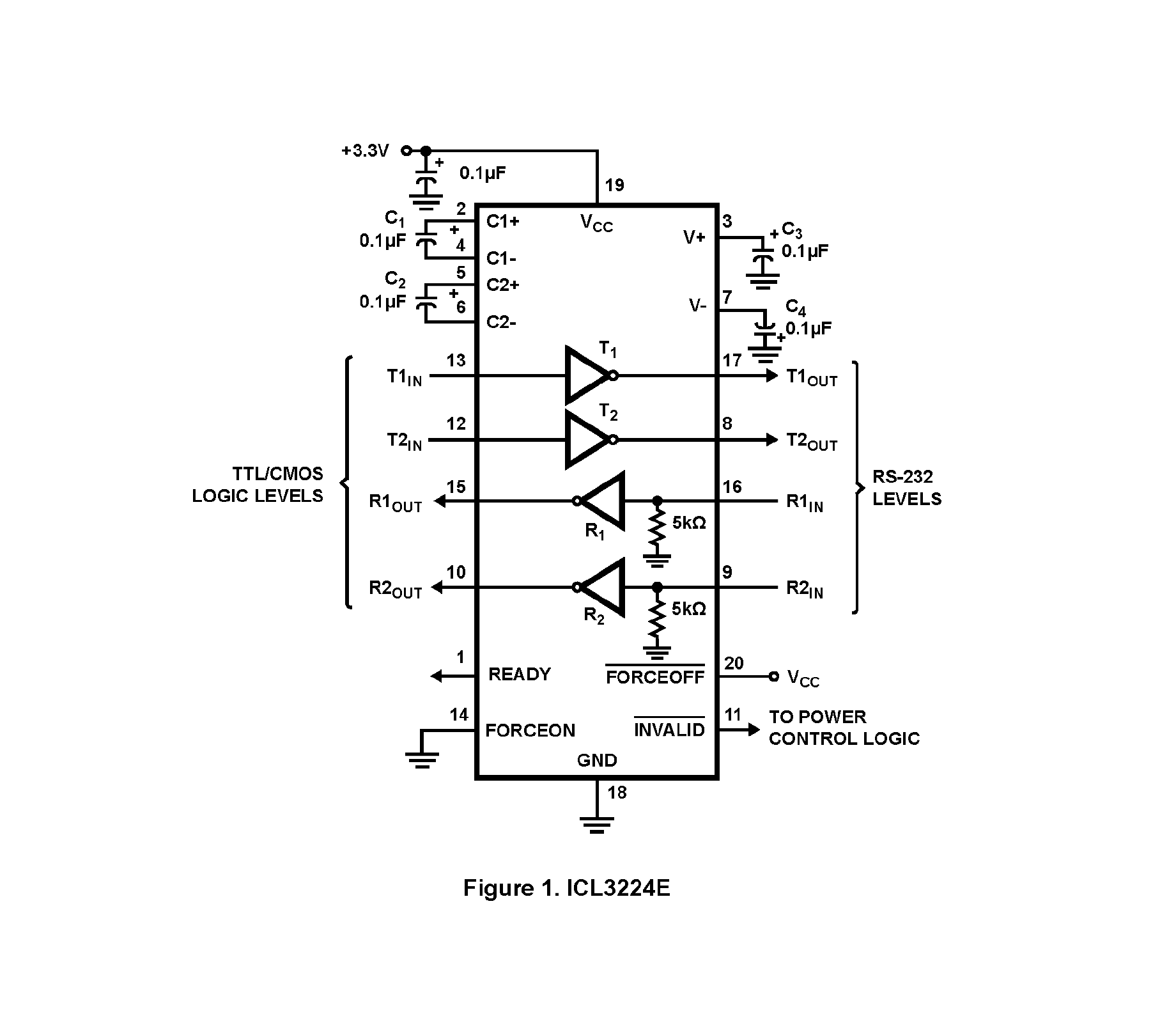

The ICL3224E, ICL3226E, and ICL3244E devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. They provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational power and even lower standby power consumption are critical. Efficient on-chip charge pumps coupled with manual and enhanced automatic powerdown functions, reduce the standby supply current to a 1µA trickle. Small footprint packaging and the use of small, low value capacitors ensure board space savings. Data rates greater than 250kbps are ensured at worst case load conditions. This family is fully compatible with 3. 3V only systems, mixed 3. 3V and 5. 0V systems, and 5. 0V only systems. The ICL3244E is a 3-driver, 5-receiver device that provides a complete serial port suitable for laptop or notebook computers. It also includes a noninverting always-active receiver for “wake-up” capability. The ICL3224E, ICL3226E, and ICL3244E feature an enhanced automatic powerdown function that powers down the on-chip power supply and driver circuits. Powerdown occurs when all receiver and transmitter inputs detect no signal transitions for a period of 30s. These devices power back up automatically whenever they sense a transition on any transmitter or receiver input.
特長
- Pb-Free Plus Anneal Available (RoHS Compliant)
- ESD protection for RS-232 I/O pins to ±15kV (IEC61000)
- Manual and enhanced automatic powerdown
- Drop in replacements for MAX3224E, MAX3226E, MAX3244E
- Meets EIA/TIA-232 and V.28/V.24 specifications at 3V
- RS-232 compatible with VCC = 2.7V
- Latch-up free
- On-chip voltage converters require only four external 0.1µF capacitors
- Ensured mouse driveability (ICL3244E)
- “Ready to Transmit” indicator output (ICL3224E/ICL3226E)
- Receiver hysteresis for improved noise immunity
- Ensured minimum data rate 250kbps
- Ensured minimum slew rate 6V/µs
- Wide power supply range single +3V to +5.5V
- Low supply current in powerdown state 1µA
アプリケーション
アプリケーション
- Any System Requiring RS-232 Communication Ports Battery Powered, Hand-Held, and Portable Equipment Laptop Computers, Notebooks, Palmtops Modems, Printers and other Peripherals Digital Cameras Cellular/Mobile Phones
ドキュメント
| Document title | Document type
|
日付 日付 | |
|---|---|---|---|
| PDF 567 KB | データシート | ||
| PDF 365 KB | アプリケーションノート | ||
| PDF 207 KB | アプリケーションノート | ||
| PDF 474 KB | アプリケーションノート | ||
| PDF 178 KB | アプリケーションノート | ||
| PDF 395 KB | アプリケーションノート | ||
| PDF 443 KB | アプリケーションノート | ||
| PDF 582 KB | アプリケーションノート | ||
| PDF 440 KB | アプリケーションノート | ||
| PDF 338 KB | アプリケーションノート | ||
| PDF 365 KB | アプリケーションノート | ||
| PDF 375 KB | アプリケーションノート | ||
| PDF 372 KB | アプリケーションノート | ||
| PDF 2.95 MB | カタログ | ||
| PDF 388 KB | EOL通知 | ||
| PDF 180 KB | 製品変更通知 | ||
| PDF 188 KB | 技術概要 | ||
| PDF 405 KB | トレーニング | ||
| PDF 239 KB | トレーニング | ||
| PDF 920 KB 简体中文 | ホワイトペーパー | ||
| PDF 5.10 MB 英語 | カタログ | ||
|
21 items
|
|||
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
| SSOP | Tube | 1410 | サンプルを入手, | |
| SSOP | Reel | 2000 |
