概要
Description

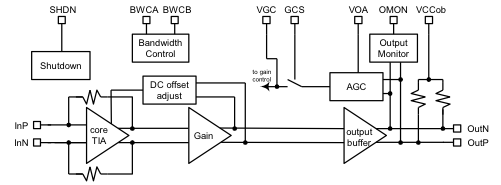

The GX36220 is a dual 32Gb/s linear Trans-Impedance Amplifier (TIA) for 400G coherent Receiver Optical Sub-Assemblies (ROSAs). The GX36220 integrates two TIA signal paths for I and Q channels. The high-performance, low power, and compact design of the GX36220 enables small form factors like CFP2 and CFP4.
特長
- Adjustable frequency range from 32Gb/s up to 64Gb/s
- Differential gain: 5,000Ω
- Low power consumption
- Linear gain over 30dB of dynamic range
- Internal AGC
- Output voltage control
- Peak detection
- Shutdown mode
アプリケーション
設計・開発
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
| WAFER | E | WFP | サンプルを入手, |
