概要

The GX32424 is a 32Gbps linear quad TIA chip that integrates four lanes of TIAs for XI, XQ, YI, and YQ channels, as well as digital interface circuitry for DC controls on a single die for 100G/200G coherent applications.

The TIA electrical characteristics, functions, and physical dimensions are designed for a small-form factor integrated optical module such as CFP2 and CFP4.

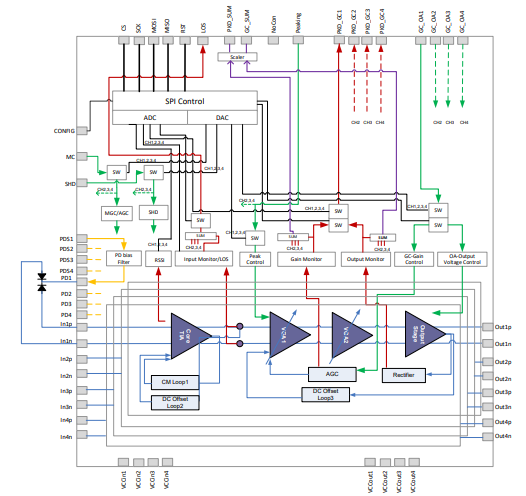

GX32424 - Block Diagram
GX32424 - Block Diagram
  • Quad 32Gbps linear TIA Integrated SPI and analog interface
  • Differential linear gain: 150–5,000Ω, and > 30dB dynamic range
  • 25+GHz adjustable 3dB bandwidth
  • Automatic and manual gain control, Output Voltage Control, Peak Detection, RSSI and Input Current Monitor, and Shutdown functionalities
  • Low THD, low cross-talk, and low power for covering 16QAM applications

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート－簡略版
GX32424 Short-Form Datasheet
PDF 178 KB
製品変更通知
PCN# : 210015 Change of Waffle Pack Label Display
PDF 134 KB
