概要

The HXR6104 Transimpedance Limiting Amplifier array is a member of IDT’s family of Optical Receiver Transmitter Array (ORTA) products targeted at the parallel optical links market. Together with a PIN detector array or discrete detectors, high capacity, high availability optical links can be designed for telecom and datacom applications. The 3.3V SiGe device integrates the trans-impedance pre-amplifier, the limiting post-amplifier and a versatile CML output stage for four optical input channels.

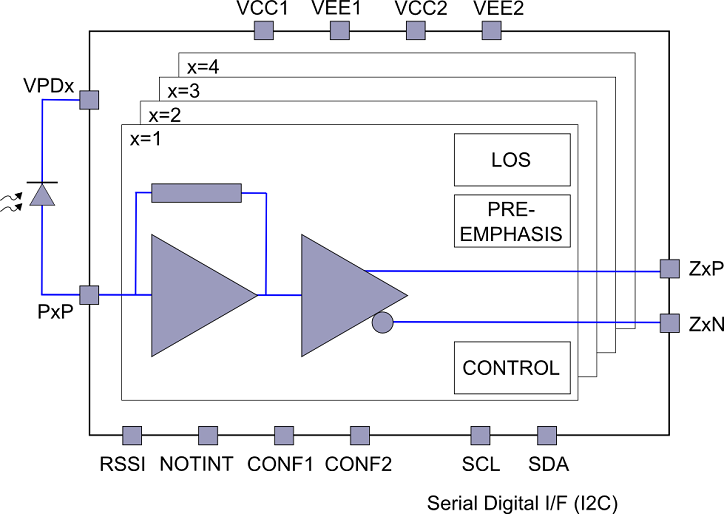

HXR6104 - Block Diagram
HXR6104 - Block Diagram
  • 20mApp receiver sensitivity for 10-12 BER at 10.3Gbps
  • Better than 3mApp overload
  • 60mW per channel power consumption with low power setting
  • Adjustable output swing size and pre-emphasis mode and signal detect threshold
  • Independent RSSI
  • Optimized for isolated and common cathode photo-detector arrays from multiple vendors
  • Control lines accessible on both sides of the chip
  • QSFP MSA compliance

ドキュメント

タイトル 分類 日付
HXR6104 Product Brief
PDF232 KB
製品概要
PCN# : 210015 Change of Waffle Pack Label Display
PDF134 KB
製品変更通知

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

製品選択

    Processing table
    型名
    Pkg. Type
    Temp. Grade
    Carrier Type
    ご購入 / サンプル
    HXR6104-DNT
    play_circleActive
    memory
    view_in_ar
    サンプル入手可能
    		 WAFER C WFP サンプルを入手,
    HXR6104-EVB
    fast_forwardPreview
    memory
    view_in_ar
    サンプル入手可能
    		 BOARD C Box サンプルを入手,
