概要
説明
The RC19013 is a 13-output PCIe Gen6 buffer that is backward compatible to earlier PCIe generations. The RC19013 provides ultra-low additive jitter and reduced in-to-out delay performance for better design-margin and incorporates several features for easier and more robust design.
特長
- LP-HCSL outputs eliminate up to 52 terminated resistors
- PCIe Gen 1–6 compliance
- Drive both source-terminated and double-terminated loads
- Selectable output slew rate via pin
- Support both 85Ω and 100Ω output impedance versions
- Open-drain LOS (Loss-Of-Signal) indication output
- Power down tolerance (PDT)
- Flexible startup sequencing (FSS)
- Automatic clock parking (ACP)
- Dedicated OE# pins to control group output
- 4-wire Side-Band interface and device daisy-chaining
- SMBus write protection features with 9 selectable addresses

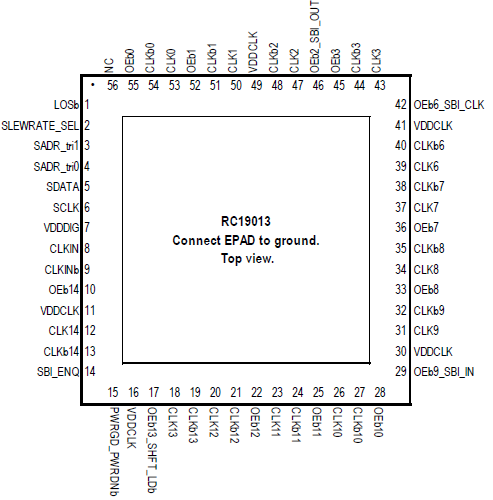

- 7 × 7 mm 56-VFQFPN package
ドキュメント
|
|
日付 | |
|---|---|---|
| PDF 1.29 MB | データシート | |
| PDF 91 KB | アプリケーションノート | |
| PDF 2.40 MB | 概要 | |
| PDF 1.99 MB | アプリケーションノート | |
| PDF 122 KB | 回路図 | |
| PDF 1.35 MB | ホワイトペーパー | |
| PDF 480 KB | アプリケーションノート | |
| PDF 235 KB | アプリケーションノート | |
| PDF 495 KB | アプリケーションノート | |
| PDF 442 KB | アプリケーションノート | |
| PDF 160 KB | アプリケーションノート | |
| PDF 565 KB | アプリケーションノート | |
12 items
|
||
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
サポート
Renesas Samples
注文可能な製品番号を選択
| 発注型名 | サンプル |
|---|---|
| RC19013A100GNG#BB0 | Availability |
| RC19013AGNG#BB0 | Availability |
ビデオ&トレーニング
PCIe Gen 6 RC19 Family Clock Buffer and Multiplexer Overview
The RC family are PCIe Gen6 clock buffer and multiplexer solutions provide industry's smallest and most compact footprint.
