概要

The DA7202 is a powerful, highly efficient, low EMI Class D speaker driver that can drive 10W into 4Ω loads directly from a 2S lithium-ion battery to power a variety of two-cell portable applications such as Ultrabooks™ and tablets.

The DA7202 performance evaluation board has been produced to enable measurement and evaluation of the DA7202 device. The evaluation board is supplied with a USB memory stick containing supporting collateral.

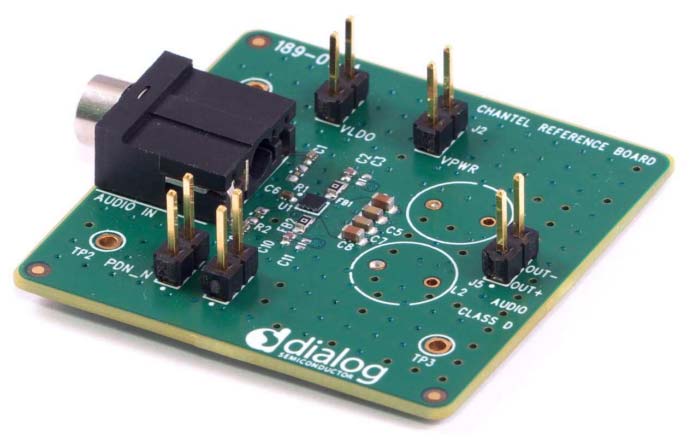

DA7202 Class D Amplifier Evaluation Kit
DA7202 Class D Amplifier Evaluation Kit
  • Low component count
  • Small PCB area due to 9 bump WLCSP 0.5mm pitch package
  • Good PSRR and THD+N
  • Differential audio inputs
  • Low EMI
  • Short circuit and thermal overload protection with auto recovery

アプリケーション

  • Ultrabooks™
  • Tablets
  • Personal navigation devices
  • Speaker accessories
  • Handheld gaming
  • Mobile computing
タイトル カテゴリ ご購入/サンプル
DA7202
10W Mono Class D Amplifier for 2S Battery-Operated Portable Devices
 Audio Integrated Power Stages ご購入/お見積

ドキュメント

タイトル 分類 日付
DA7202 Evaluation Board User Guide
PDF1.08 MB
マニュアル－開発ツール
DA7202 Datasheet
PDF678 KB
データシート
DA7202 EVB Layout & BOM
ZIP693 KB
その他資料
DA7202 Schematic
PDF30 KB
回路図

製品選択

    Processing table
    型名
    ご購入 / サンプル
    DA7202-EVAL
    play_circleアクティブ
    memory
