Smart kitchen appliances have several features, such as color display, touch control and sound feedback. Voice recognition is also an emerging feature for non-contact operation. Sensing functions such as humidity/temperature and gas, can also be added on as an additional feature to these systems.

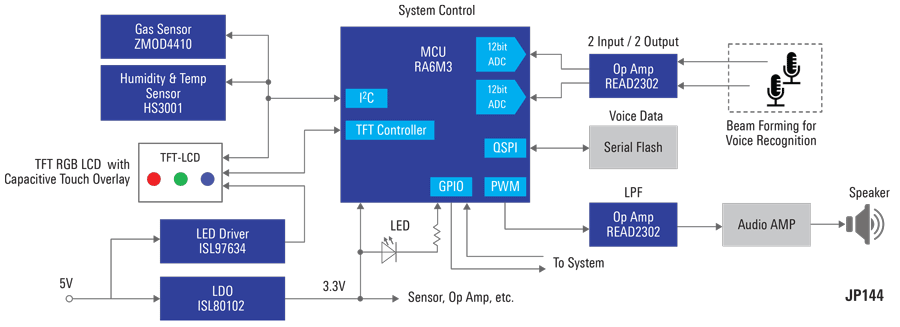

This reference design shows a multi-HMI function control and sensing solution, with the RA6M3 32-bit micrcocontroller (MCU) consolidating system control.
System Benefits:
- Single-chip MCU, reduced bill-of-materials (BOM) cost and PCB size
- High-performance HMI (voice recognition, graphic and sound feedback/adaptive differential pulse-code modulation) can be controlled in one chip
- High-performance LDO, gas sensor and temperature/humidity sensor for an integrated solution
Related Products
| Product | Description | Featured Document | Ordering |
|---|---|---|---|
| Microcontroller | |||
| RA6M3 | 120MHz Arm® Cortex®-M4F core with USB High-Speed, Ethernet and TFT controller | Datasheet | Select Specific Device |
| LDO | |||
| ISL80102 | High-Performance 2A Linear Regulator | Datasheet | Buy/Sample |
| LED Driver | |||
| ISL97634 | White LED Driver with PWM Dimming | Datasheet | Buy/Sample |
| Sensor | |||
| ZMOD4410 | Indoor Air Quality Sensor Platform | Datasheet | Buy/Sample |
| HS3001 | High-Performance Relative Humidity and Temperature Sensor | Datasheet | Buy/Sample |
| Op Amp | |||
| READ2302 | High Drivability and High Slew Rate, Input/Output Full Range, CMOS Dual Operational Amplifier VIO ≤ ±6mV, SR = 8V/μs, GBW = 6MHz | Datasheet | Buy/Sample |
