This software controls Renesas sensor products and acquires measurement data. This software consists of a sensor middleware layer and an I2C communication middleware layer.

  • Sensor middleware : Provides API functions to control sensors
  • I2C communication middleware : Absorbs differences in I2C communication interface specifications that depend on MCU used.

The combination of these two layers makes it possible to develop applied products easily and quickly using Renesas sensor products, without being aware of the type of MCU or the control method of the communication interface.


图像

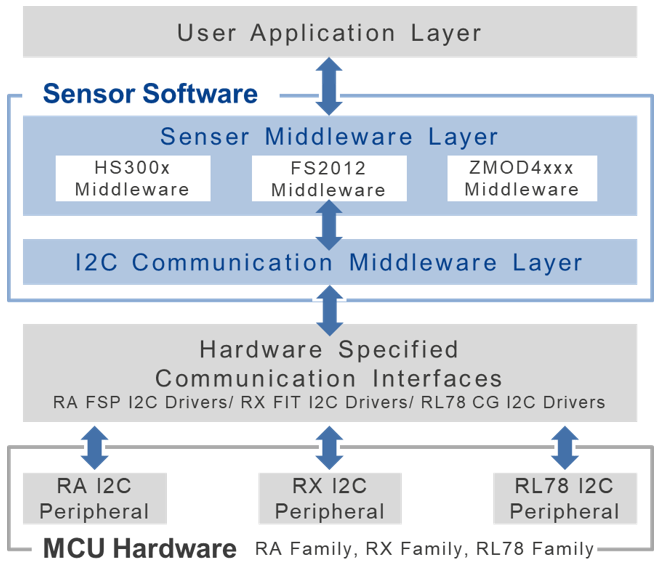

Sensor Software Layer



特性

  • Compliant with Renesas RA FSP and RX FIT
  • RL78 Middleware compliant with Code Generator
  • GUI (RA Configuration, RX Smart Configurator) setting is available for configuration.
  • Supports both non-OS use and RTOS use.
  • Since the control to the communication interface of MCU is done via the sensor communication middleware, user can develop software without being aware of the hardware and driver specifications of the communication interface.
  • The sensor API supports the calculation of measurement values using sensor-specific calculation methods. The user does not need to create calculation programs.
  • No need to obtain individual libraries

new_releases发布信息

Sensor software and sample software projects that use the drivers are available :

archive : Sample download (free of charge) | -: Not Available

Sensor MCU Sensor Software Sample Software Project
HS300x (High-Performance Relative Humidity and Temperature Sensor) (Note4) RA Family FSP (Note1) Ver.1.10 archive
RX Family Ver.1.10 archive or RX Driver Package (Note2) Ver.1.10 archive
RL78 Family Ver.1.10 archive (Note3) Ver.1.10 archive
RE01 256KB Group Ver.1.10 archive (Note3) Ver.1.10 archive
FS2012 (Flow Sensor) (Note4) RA Family FSP (Note1) Ver.1.00 archive
RX Family Ver.1.00 archive or RX Driver Package (Note2) Ver.1.00 archive
RL78 Family Ver.1.00 archive (Note3) Ver.1.00 archive
ZMOD4410 (Indoor Air Quality Sensor) (Note4) RA Family FSP (Note1) Ver.1.10 archive
RX Family Ver.1.00 archive or RX Driver Package (Note2) Ver.1.10 archive
RL78 Family Ver.1.00 archive Ver.1.10 archive
RE01 256KB Group Ver.1.00 archive (Note3) Ver.1.10 archive
ZMOD4510 (Outdoor Air Quality Sensor) (Note4) RA Family FSP (Note1) Ver.1.10 archive
RX Family Ver.1.00 archive or RX Driver Package (Note2) Ver.1.10 archive
RL78 Family Ver.1.00 archive Ver.1.10 archive
I2C Communication Middleware (Note4) RA Family FSP (Note1)
RX Family Ver.1.10 archive or RX Driver Package (Note2)
RL78 Family Ver.1.10 (Note3)
RE01 256KB Group Ver.1.10 (Note3)

Notes

  1. Included in FSP
  2. Included in RX Driver Package
  3. Included in sample software projects package
  4. This FIT module needs to be used combined with I2C Communication Middleware FIT module, download both for using

description文档

文档标题 language 类型 文档格式 文件大小 日期
应用指南 & 白皮书
RX Family HS300x Sensor Firmware Integration Technology Rev.1.10 应用文档 PDF 193 KB
- RX Family HS300x Sensor Firmware Integration Technology Rev.1.10 - Sample Code 样例程序 ZIP 1.92 MB
RX Family Sensor I2C Communications Firmware Integration Technology Rev.1.10 应用文档 PDF 193 KB
- RX Family Sensor I2C Communications Firmware Integration Technology Rev.1.10 - Sample Code 样例程序 ZIP 3.86 MB
HS300x Sample application
相关文件: 样例程序
日本語 应用文档 PDF 3.41 MB
ZMOD4xxx Sample application
相关文件: 样例程序
日本語 应用文档 PDF 4.09 MB

file_download下载

文档标题 language 类型 文档格式 文件大小 日期
样例程序
RX Family HS300x Sensor Firmware Integration Technology Rev.1.10 - Sample Code 样例程序 ZIP 1.92 MB
- RX Family HS300x Sensor Firmware Integration Technology Rev.1.10 应用文档 PDF 193 KB
RX Family Sensor I2C Communications Firmware Integration Technology Rev.1.10 - Sample Code 样例程序 ZIP 3.86 MB
- RX Family Sensor I2C Communications Firmware Integration Technology Rev.1.10 应用文档 PDF 193 KB
HS300x Sample application - Sample Code
相关文件: 应用文档
日本語 样例程序 ZIP 97.25 MB
ZMOD4xxx Sample application - Sample Code
相关文件: 应用文档
日本語 样例程序 ZIP 152.64 MB
