RL78/G1D Evaluation Board is very flexible allowing the user to evaluate RL78/G1D from the application angle and also supports new development. It has gained FCC, IC, CE, KC and MIC (Japan) certifications. The RL78/G1D Evaluation Board consists of a RL78/G1D module which can be plugged on to the development board and connects to IDE for development and debugging. The development board can also work with PC GUI tool for application level evaluation.

*Please contact the nearest Renesas sales office or Renesas distributor for purchase.

图像

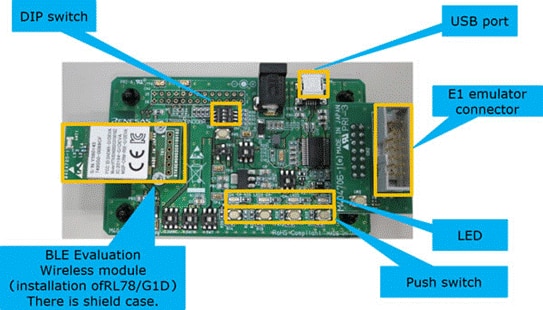

evaluation_board_1

Specifications

Item Contents
Wireless module
  • RL78/G1D module(RTK0EN0002C01001BZ)
USB communication
  • USB interface USB mini-B connector
Input functions
  • RESET switch
  • DIP switch (4-pole switch)
  • Push switches (four)
Display
  • Four LEDs
Debug interface
  • 2.54 mm pitch male connector for connecting to an E1 emulator (sold separately)
Power supply voltage
  • 1.8V to 5.0V
  • One of the following power supplies can be selected
  • 1. AC adapter 5.0 V or DC jack for battery box input
        Power supply jack: OD φ 5.5 mm, ID φ 2.0 mm,
        outside: minus, inside: plus
  • 2. USB VBUS 5 V
  • 3. 3.3 V supplied from E1 emulator Supply
Dimension
  • 55mm × 90mm × 18mm

Note: This evaluation board does not include an AC adapter, Development tool, and Protocol Stack. Please refer to Protocol Stack's Home page to get Protocol Stack.

应用

  • Building Management System, Mobile Device
