High Drivability and High Slew Rate, Input Output Full Range, CMOS Dual Operational Amplifier, VIO ≤±6mV, SR=8V/μs , GBW=6MHz
Jump to Page Section:
Overview
Description
The READ2304G is input and output full range dual CMOS Operational Amplifier realizing high drivability and high slew rate. This IC can be used in minimum operating supply voltage from 2.5V, and in wide ambient temperature range from -40˚C to +105˚C.
Available in ultra-small 8-pin TSSOP and MSOP packages.

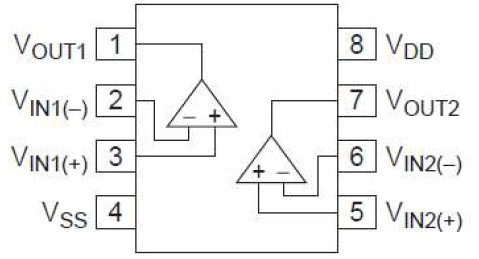

Features
- Low voltage single supply operation: VDD = 2.5V to 5.5V
- Low input offset voltage: VIO ≤ ±6.0mV
- Low input bias current: IB ≤ (1pA)
- Wide output voltage range: VOUT : VSS+0.1V to VDD-0.1V (at Io = 5mA)
- Supply current (per channel) : IDD = 0.75mA typical
- High slew rate: SR = 8V/μs typical
Applications
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.07 MB
|
Datasheet
|
||
PDF974 KB
|
Application Note
|
||
PDF381 KB
|
Application Note
|
||
PDF291 KB
|
Application Note
|
||
PDF242 KB
|
Application Note
|
||
PDF255 KB
|
Application Note
|
||
PDF263 KB
|
Application Note
|
||
PDF564 KB
|
Application Note
|
||
PDF357 KB
|
Application Note
|
||
Brochure
|
|||
PDF1.11 MB
|
Flyer
|
||
PDF223 KB
|
Other
|
||
PDF187 KB
|
Other
|
||
PDF138 KB
|
Product Reliability Report
|
||
PDF138 KB
|
Product Reliability Report
|
||
PDF325 KB
|
Training
|
||
PDF258 KB
|
Training
|
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| MSOP | Embossed Tape | ||
| TSSOP | Get Samples, |
