Automotive HD link (AHL) is a high definition (HD) analog video link solution for parking assistance camera systems. It is ideal for rear camera, surround view and mirror replacement camera systems.

System Benefits​:

  • HD video transmission using low cost standard definition (SD) analog video cables and connectors.
  • Lower cable and connector cost by ~30% for automotive camera systems compared to digital transmission.
  • No latency and no loss in picture quality or object recognition accuracy.
  • Bidirectional I2C control channel – independent of the video.
  • R-Car V3H SoC offers low power consumption hardware accelerators for object detection/classification algorithms.
  • Optimized power management ICs for cameras and SoC.

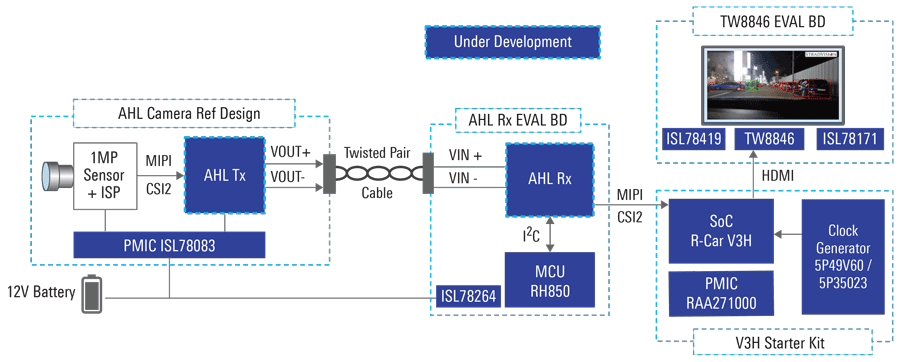

Parking Assistance System with AHL Camera

Related Products

Product Description Featured Document Ordering

Microcontroller
RH850/F1L 32-Bit Dual-Core, High-End In-Vehicle Microcomputers for Body Applications User's Manual Contact Sales
RH850/F1K 32-Bit High-End Automotive Microcontrollers Ideal for Body Applications User's Manual Buy/Sample
RH850/F1KM-S1 32-Bit High-End Automotive Microcontrollers Ideal for Body Applications User's Manual Buy/Sample
RH850/F1KM-S4 32-Bit High-End Automotive Microcontrollers Ideal for Body Applications User's Manual Buy/Sample

System-on-Chip (SoC)
R-Car V3H System-on-Chip (SoC) Designed for Intelligent Cameras with Deep Learning Capabilities User's Manual Contact Sales

Automotive HD link (AHL)
AHL (Contact Sales) High Definition (HD) Analog Video Link Contact Sales Contact Sales

Power Management IC (PMIC)
RAA271000 R-Car V3H PMIC System (LV) Datasheet Contact Sales
ISL78083 Automotive Camera Power Management IC with 3 Synchronous Buck Regulators and 1 LDO Datasheet Buy/Sample
ISL78419 Integrated Automotive TFT-LCD Power Supply Regulator Datasheet Buy/Sample

Primary Regulator
ISL78264 Automotive Dual Synchronous Buck Controller with Integrated Drivers Datasheet Buy/Sample

VSP LCD Controller
TW8846 LCD Video Processor with Decoder, LVDS, TTL, MIPI, Image Enhancement, and Video Integrity Diagnostic Datasheet Buy/Sample
RAA278842 LCD Video Processor with Dual Channel LVDS Open LDI Panel Interface and a Separate MIPI-CSI2 Output Datasheet Buy/Sample

LED Backlight Controller
ISL78171 6-Channel, 50mA Automotive LED Driver with Ultra-High Dimming Ratio and Phase Shift Control Datasheet Buy/Sample

Clock Generator
5P49V60 VersaClock® 6E Programmable Clock Generator for Automotive Datasheet Buy/Sample
5P35023 Programmable VersaClock® Clock Generator Datasheet Buy/Sample
