Outdoor Air Quality Sensor Platform
Jump to Page Section:
Overview
Description

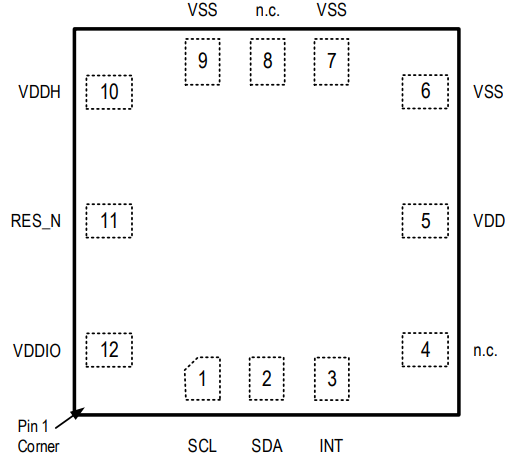

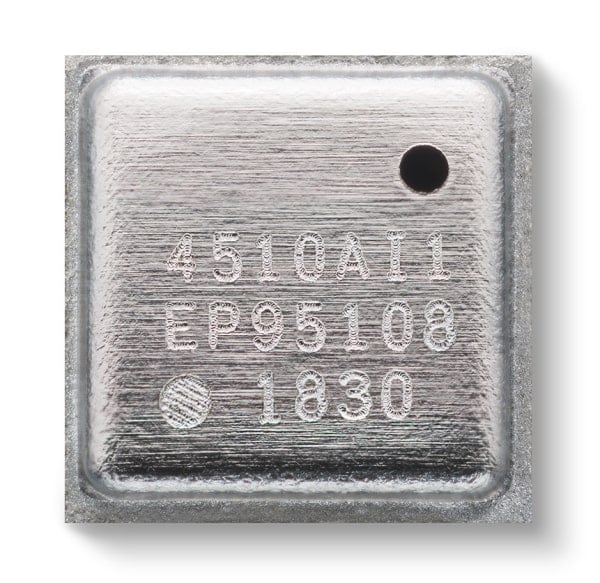

The ZMOD4510 gas sensor platform detects air quality in a variety of indoor and outdoor applications. The module is a 12-pin LGA assembly (standard version 3.0mm x 3.0mm x 0.7mm) that consists of a gas sense element and a CMOS signal conditioning IC. The module’s sense element consists of a heater element on a silicon-based MEMS structure and a metal-oxide (MOx) chemiresistor. The signal conditioner controls the sensor temperature and measures the MOx resistance, which is a function of the gas concentration.
The device is ideal for monitoring and reporting Outdoor Air Quality (OAQ). The provided free firmware enables different ZMOD4510 features based on traditional and machine learning algorithms with an embedded artificial intelligence (AI) using the same hardware platform. This is used to determine the Air Quality Index (AQI) output, which is based on gases present. The outdoor air quality includes nitrogen dioxide (NO2) and ozone (O3). Alternatively, depending on the operation mode, the ZMOD4510 can selectively measure ozone in an ultra-low power (ULP) operation.

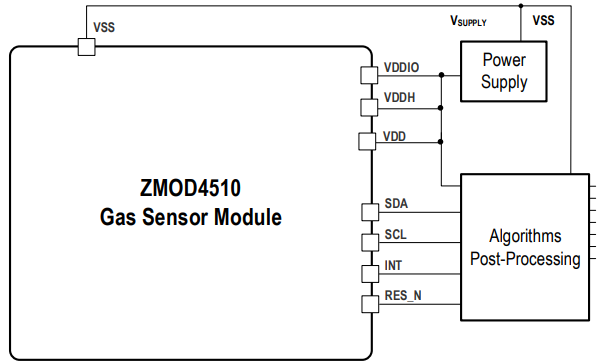

The measurement results can be read via an I2C interface with the user’s microprocessor, which processes the data to determine the levels of gases present and to indicate the AQI based on international standards. With its latest ultra-low operating current consumption, the ZMOD4510 is an excellent choice for low-voltage and low power battery applications.
Features
- Sensor output based on operation method:
- Non-selective measurement of nitrogen dioxide (NO2) and ozone (O3)
- Selective ozone (O3) measurement using ultra-low power
- Supports international standards for air quality, such as the US Environmental Protection Agency (EPA)
- Ultra-low average power consumption down to 0.2mW
- External reset pin (active-LOW)
- Siloxane resistant
- RoHS compliant
- Target operation temperature: -40 °C to +65 °C
- Supply voltage: 1.7V to 3.6V
- Water and dustproof version available (IP67 certified)
- Available assembly sizes:
- 3.0mm x 3.0mm x 0.7mm (standard version)
- 3.0mm x 3.0mm x 0.9mm (IP67 version)
Applications
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 265 KB | Datasheet | ||
| PDF 953 KB | Manual - Development Tools | ||
| PDF 2.87 MB 日本語 | Application Note | ||
| PDF 4.84 MB 日本語 | Application Note | ||
| PDF 1.61 MB | Application Note | ||
| PDF 127 KB | Application Note | ||
| PDF 190 KB | Application Note | ||
| PDF 1.50 MB | White Paper | ||
|
8 items
|
|||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | Renesas |
1 item
|
||
Sample Code
Sample Code
Filters
|
|||
|---|---|---|---|
| Title | Type | Date Date | |
|
[Software=FSP|v4.5.0;RX Driver Package|v1.35],[Toolchains=GNU ARM Embedded|v10.3.1.20210824;CC-RX|v3.02.00;GNURX|8.3.0.202004;CC-RL|v1.10.00;GNURL|4.9.2.202103;]
ZIP
202.84 MB
Application:
IoT Applications
Compiler:
CC-RL, CC-RX, GNU ARM Embedded, GNURL78, GNURX, ICCARM, ICCRL78, ICCRX
Function:
Application Example, Communication Interface
IDE:
e2 studio, IAR EWARM, IAR EWRL78, IAR EWRX
|
Sample Code | ||
|
ZIP
3.06 MB
Application:
IoT Applications
Function:
Application Example, Communication Interface, Driver or Library
|
Sample Code | ||
|
ZIP
3.74 MB
Application:
IoT Applications
Function:
Application Example, Communication Interface, Driver or Library
|
Sample Code | ||
|
3 items
|
|||
Boards & Kits
Boards & Kits
Outdoor Air Quality Sensor Platform Evaluation Kit
The ZMOD4510-EVK creates an easy way to evaluate the ZMOD4510 Outdoor Air Quality sensor. While the ASIC inside the sensor module controls the actual MOx and MEMS...
Featured Documents:
Outdoor Air Quality Sensor Pmod™ Board (Renesas Quick-Connect IoT)
The US082-ZMOD4510EVZ board enables quick prototyping of the ZMOD4510 gas sensor module for outdoor air quality (OAQ) in a custom system design. The board provides a...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Pkg. Type |
Lead Count (#) |
Description |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|
| Part Number | |||||||
| LGA | 12 | Standard package | I | Yes | Tray | Get Samples, | |
| LGA | 12 | Standard package | I | Yes | Reel | Get Samples, | |
| LGA | 12 | Waterproof package-IP67 rating | I | Yes | Tray | Get Samples, | |
| LGA | 12 | Waterproof package-IP67 rating | I | Yes | Reel | Get Samples, | |
| LGA | 12 | Standard package with removable sticker | I | Yes | Reel | Get Samples, | |
| LGA | 12 | Standard package with removable sticker | I | Yes | Tray | Get Samples, | |
| LGA | 12 | Waterproof package-IP67 rating with removable sticker | I | Yes | Reel | Get Samples, | |
| LGA | 12 | Waterproof package-IP67 rating with removable sticker | I | Yes | Tray | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
ZMOD4510 Gas Sensors for Outdoor Air Quality Applications Overview
This video gives a general overview of the ZMOD4510 outdoor air quality gas sensors from Renesas. The ZMOD4510 is the first software-upgradeable, digital outdoor air quality sensor for high volume applications. This sensor is capable of detecting ozone (O3) and nitrogen oxides (NOx) gases, two significant causes of unhealthy outdoor air quality. The ability of the ZMOD4510 to quantify combined ozone and NOx in concentrations as low as 20 parts per billion (ppb), coupled with its outstanding combination of flexibility, miniature form factor and waterproof packaging option makes it an ideal solution for a wide variety of industrial and consumer applications.
