Overview

This motor solution kit is a reference kit that enables easy initial evaluation and advanced development of motor control systems using RZ/T2M (or RZ/T2L or RZ/N2L) with high voltage 220V AC servo motor.

Three types of motor solution boards are available: RZ/T2M version, RZ/T2L version, and RZ/N2L version. The desired motor solution board (100 to 250V AC power supply compatible) and 220V AC servo motor (equipped with Tamagawa-seiki absolute encoder) are available for free rental.

Kit Contents

  • AC Servo Solution Board
    • Controller board (equipped with RZ/T2M BGA225, RZ/T2L BGA196 or RZ/N2L BGA225)
    • Inverter board
  • 220V AC servo motor with absolute encoder
  • Motion utility software
  • Schematics
  • CN032 AC Servo Solution Hardware Manual (for RZ/T2M, RZ/N2L)
  • CN032 AC Servo Solution Hardware Manual (for RZ/T2L)
  • CN032 AC Servo Solution Firmware Manual
  • CN032 AC Servo Solution Startup Guide (for Motion Control Utility)
  • CN032 AC Servo Solution Startup Guide (for EtherCAT)

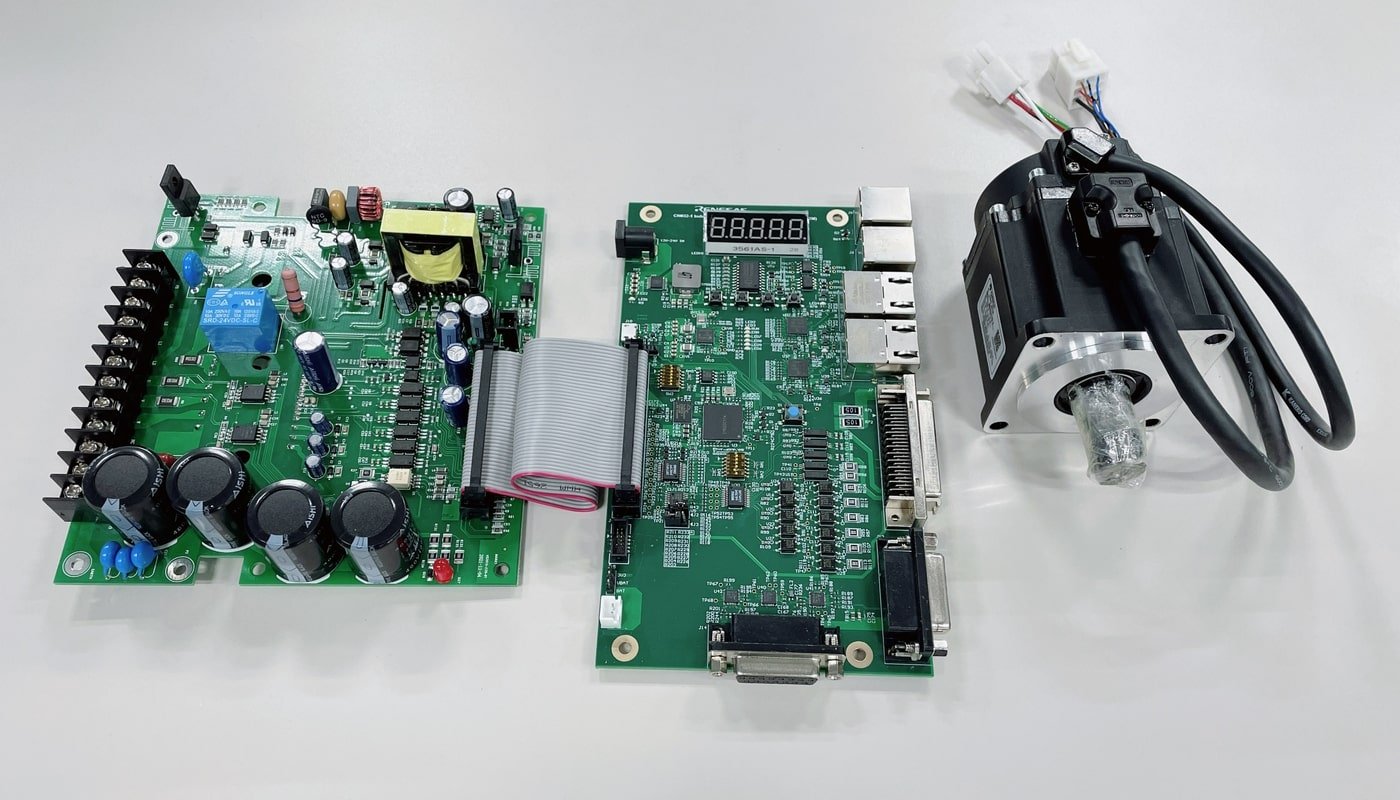

AC Servo Solution Kit
AC Servo Solution Kit
  • Power voltage:100-250V
  • 220V AC servo motor
  • 1-axis control is possible by connecting inverter board.
  • Switching frequency: 16kHz
  • Current detection (ΣΔ Modulator(RV1S9353A))
  • Position detection
    • Absolute encoder x1
  • Ethernet ports x2, CAN, UART, USB, RS485
  • Abnormal detection
    • Bus Voltage
    • over current
  • Motion Utility software (Windows application)
    • Supports incremental/absolute encoder
    • Position control, motion control (trapezoidal control)
    • Real-time internal data extraction/waveform display (motion scope)
    • Tuning of Kp, Ki, Kd
  • Motion control via EtherCAT
    • EtherCAT CiA402 communication by using EtherCAT master tool "TwinCAT3"
AC Servo Solution
AC Servo Solution

Applications

  • Industrial motor
  • Inverter
  • Motion controller
Title Category Buy / Sample
RZ/N2L
Integrated TSN-Compliant 3-Port Gigabit Ethernet Switch Enables Various Industrial Applications to Easily Implement Industrial Ethernet and TSN
 RZ 32 & 64-bit MPUs, MCU / MPU Selection Table Buy / Sample
RZ/T2L
High-Performance MPU Realizing High-Speed and High-Precision Real-Time Control with EtherCAT
 RZ 32 & 64-bit MPUs Buy / Sample
RZ/T2M
High-performance Multi-function MPU Realizing High-speed Processing and High Precision Control for Industrial AC Servos and Controllers
 RZ 32 & 64-bit MPUs, MCU / MPU Selection Table Buy / Sample

Documentation

Title
Type 		Date
CN032 AC Servo Solution Startup Guide (for Motion Control Utility)
PDF 3.16 MB
Related Files:
Quick Start Guide
CN032 AC Servo Solution Hardware Manual (for RZ/T2M, RZ/N2L)
PDF 2.59 MB 		Manual - Development Tools
CN032 AC Servo Solution Hardware Manual (for RZ/T2L)
PDF 3.68 MB 		Manual - Development Tools
CN032 AC Servo Solution Startup Guide (for EtherCAT)
PDF 4.70 MB 		Quick Start Guide
CN032 AC Servo Solution Firmware Manual
PDF 852 KB 		Manual - Development Tools
CN032 AC Servo Solution Design Package
ZIP 24.75 MB 		Schematic
6 items

Design & Development

Sample Code
Title
Type Date
CN032 AC Servo Solution Package
[Software=FSP|v1.00],[Toolchains=GNU ARM Embedded|v9.3.1,20200408;IAR Embedded Workbench for ARM v9.30.1]
ZIP 52.47 MB
Application: Industrial
Compiler: GNU ARM Embedded, ICCARM Function: Software Package IDE: e2 studio, IAR EWARM
Related Files:
Sample Code
1 item
