4K x 18 SyncFIFO, 5.0V
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

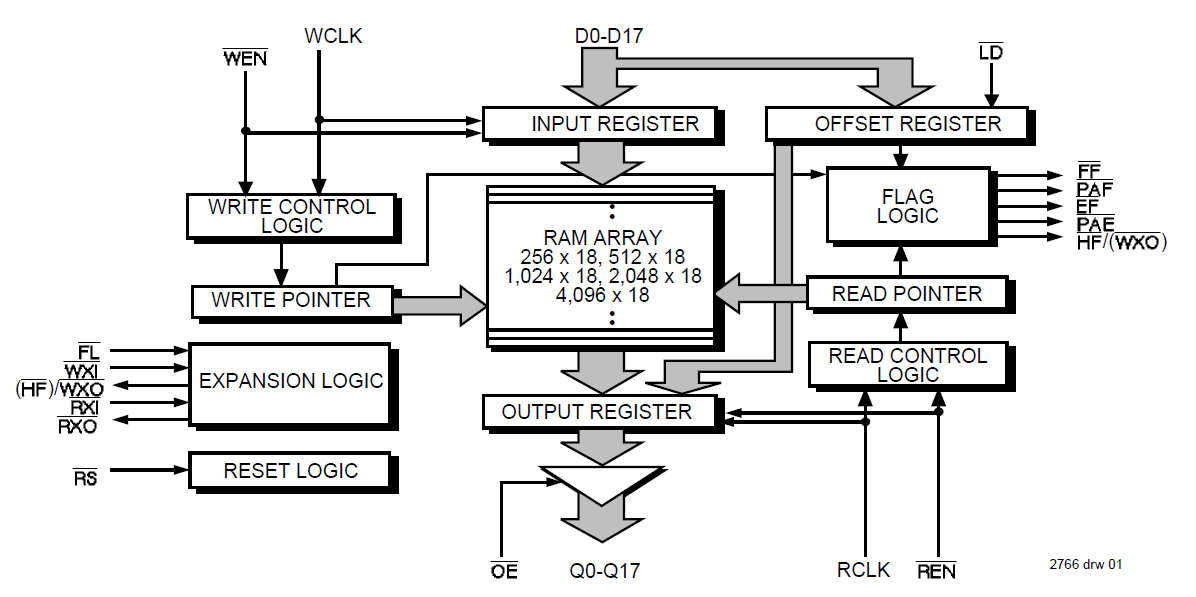

The 72245 is a 4K x 8 First-In, First-Out memory with clocked read and write controls and would be useful for a wide variety of data buffering needs, such as optical disk controllers, Local Area Networks (LANs), and interprocessor communication. These FIFOs have 18-bit input and output ports. The read clock can be tied to the write clock for single clock operation or the two clocks can run asynchronous of one another for dual-clock operation. These devices are depth expandable using a Daisy-Chain technique.
Features
- 10 ns read/write cycle time
- Empty and Full flags signal FIFO status
- Easy expandable in depth and width
- Asynchronous or coincident read and write clocks
- Programmable Almost-Empty and Almost-Full flags with default settings
- Half-Full flag capability
- Dual-Port zero fall-through time architecture
- Output enable puts output data bus in high-impedance state
- Available in 64-pin TQFP, STQFP and 68-pin PLCC packages
- Industrial temperature range (–40C to +85C) is available
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF205 KB
|
Datasheet
|
||
PDF125 KB
|
Application Note
|
||
PDF334 KB
|
Application Note
|
||
PDF938 KB
|
End Of Life Notice
|
||
PDF909 KB
|
End Of Life Notice
|
||
PDF645 KB
|
End Of Life Notice
|
||
PDF123 KB
|
Guide
|
||
PDF567 KB
|
Product Change Notice
|
||
PDF95 KB
|
Product Change Notice
|
||
PDF50 KB
|
Product Change Notice
|
||
PDF129 KB
|
Product Change Notice
|
||
PDF24 KB
|
Product Change Notice
|
||
PDF84 KB
|
Product Change Notice
|
||
PDF820 KB
|
Product Change Notice
|
||
PDF377 KB
|
Product Change Notice
|
||
PDF469 KB
|
Product Change Notice
|
||
PDF1023 KB
|
Product Change Notice
|
||
PDF445 KB
|
Product Change Notice
|
||
PDF223 KB
|
Product Change Notice
|
||
PDF164 KB
|
Product Change Notice
|
||
PDF729 KB
|
Product Change Notice
|
||
PDF290 KB
|
Product Change Notice
|
||
PDF80 KB
|
Product Change Notice
|
||
PDF26 KB
|
Product Change Notice
|
||
PDF134 KB
|
Product Change Notice
|
||
PDF150 KB
|
Product Change Notice
|
||
PDF65 KB
|
Product Change Notice
|
||
PDF150 KB
|
Product Change Notice
|
||
PDF49 KB
|
Product Change Notice
|
||
PDF48 KB
|
Product Change Notice
|
||
PDF40 KB
|
Product Change Notice
|
||
PDF47 KB
|
Product Change Notice
|
||
PDF274 KB
|
Product Change Notice
|
||
PDF44 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|---|---|---|---|---|---|---|
| TQFP | 64 | C | Yes | Tray | Get Samples, | |
| TQFP | 64 | C | Yes | Reel |
