56Gb/s PAM4 CDR/Retimer with Linear TIA, Uni-Di
Jump to Page Section:
Overview
Description
The HXR14450 is a quad-channel, low power, linear trans-impedance amplifier (TIA) with an integrated clock and data recovery (CDR) unit. It is a member of the family of optical receiver transmitter array (ORTA) products for high-speed optical interconnects. It is based on PAM4 modulation for next-generation Datacom applications.

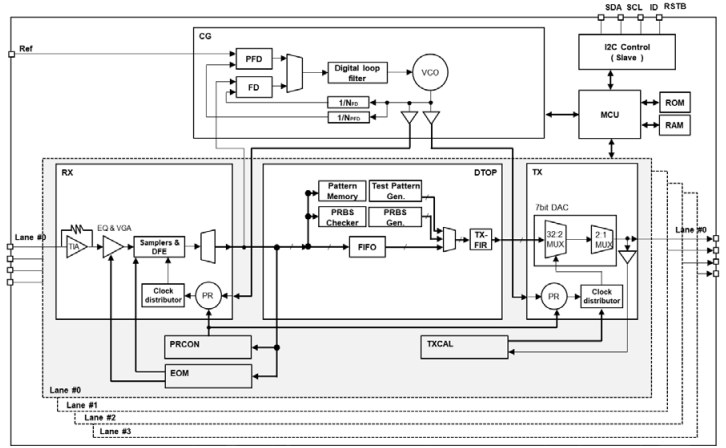

The HXR14450 integrates a linear trans-impedance pre-amplifier, linear post-amplifier, CDR unit, and a versatile output stage in one chip for higher density and lower power consumption applications.
Features
- Quad Integrated 56Gb/s PAM4 Linear TIA with CDR
- Low power – typical 400mW per channel
- Typical 700mVppd output (adjustable)
- Up to 3mApp overload
- Integrated clock and data recovery unit
- Independent, per channel receiver signal strength indicator (RSSI)
- 5kΩ typical differential gain
- Linear operation with internal automatic gain control (AGC)
- Adaptive linear equalizer and decision feedback equalizer (DFE) at the receiver
- Programmable 3-tap de-emphasis at the transmitter
- Support reference-less and reference clock modes
- On-chip testability: eye opening monitor (EOM), jitter tolerance (JTOL), PRBS generator, error checker
- Support both isolated and common cathode photo-detector (PD) arrays
- I2C interface control
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| WAFER | U | WFP | ||
| BOARD | C | Box | ||
| WAFER | U | WFP |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
HXT14450 / HXR14450 Integrated 56 Gb/s Optical CDR / Retimers
Watch an overview of the industry’s first CMOS-based PAM4 CDR solutions, HXT14450 50G/lane PAM4 integrated CDR with VCSEL driver and HXR14450 TIA designed for 200 Gb/s and 400 Gb/s transceivers and AOCs (active optical cables) in datacenters. The series features significantly lower power and smaller size compared with traditional DSP solutions, as well as higher integration – including an integrated MCU – to further simplify system design.
