Programmer Board for VersaClock® 6 - 5P49V69xx
Jump to Page Section:
Overview
Description

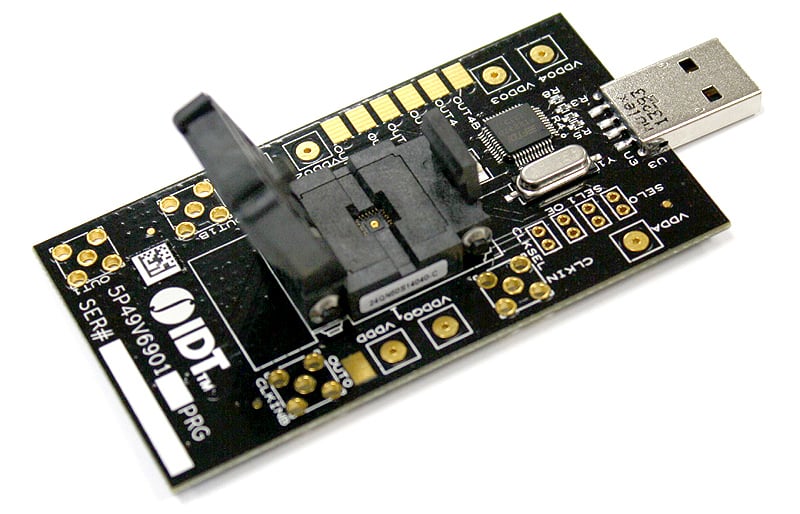

The VersaClock 6 - 5P49V69xx programmer board is made to ease the programming of blank 5P49V69xx parts. With the on-board USB interface, Renesas Timing CommanderTM GUI can be used to communicate with the blank device in the socket for configuration and programming. Compatible with 5P49V6901, 5P49V6913, 5P49V6914.
Features
-
Program VersaClock 6 – 5P49V69xx blank parts in the socket
-
Programmer board uses Renesas’s Timing Commander GUI – to program the blank parts
-
USB port is the communication channel between the GUI and the VersaClock 6 – 5P49V69xx device in the socket.
