Overview

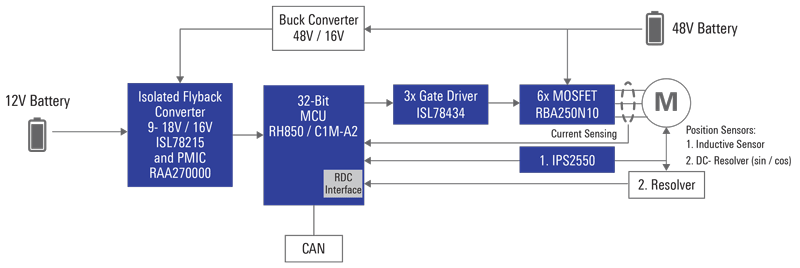

The 48V Auxiliary Inverter solution is a proof of concept 48V motor control solution for Mild Hybrid Electric Vehicles (MHEV) in conjunction with a high-speed position sensor. It includes a Renesas RH850/C1M-A2 microcontroller, IPS2550 inductive position sensor, RAA270000 power management IC, three ISL78434 half-bridge drivers, an ISL78215 12V low-voltage isolated flyback converter, and 100V ANM2 power MOSFETs. This proof of concept is an example of a complete 48V motor control solution for MHEV.

System Benefits

  • 12V/48V dual supply concept with domain isolation
  • Controls a 48V 3-phase BLDC motor
  • Supports shunt based and hall sensor based current sensing
  • Supports cos/sin resolver, inductive sensor for rotor position
  • DC-link voltage measurement
  • Diagnostic and monitoring functions
  • Functional and performance verification proven
48V Auxiliary Inverter

Related Products

Product Description Featured Document Ordering

Microcontroller
RH850/C1M-A2 Microcontroller with G3MH Dual CPU Core, Ideal for HEV/EV Motor Control User's Manual Contact Sales

Isolated Flyback Converter
ISL78215 Improved Industry Standard Single-Ended Current Mode PWM Controller Datasheet Buy/Sample

Power Management
RAA270000KFT Power Management IC (PMIC) for Automotive RH850 MCUs Datasheet Contact Sales

Inductive Position Sensor (IPS)
IPS2550 Inductive Position Sensor for High-Speed Motor Commutation (Automotive) Datasheet Buy/Sample

MOSFET
RBA250N10 N-Channel Power MOSFET 100V, 250A, MP-25ZU/TO-263-7-pin-SHL for Automotive Datasheet Contact Sales
Half-Bridge Driver
ISL78434 100V Boot, 4A Peak, Half-Bridge Driver with Single PWM J83 Input and Adaptive Dead Time Control Datasheet Buy/Sample

Videos & Training

48V Auxiliary Motor Control Proof of Concept Solution

A cost-effective solution based on resolver-less position sensor concept with reduced chip set, improved levels of functional integration and proven interoperability of all components.
