Overview
Description

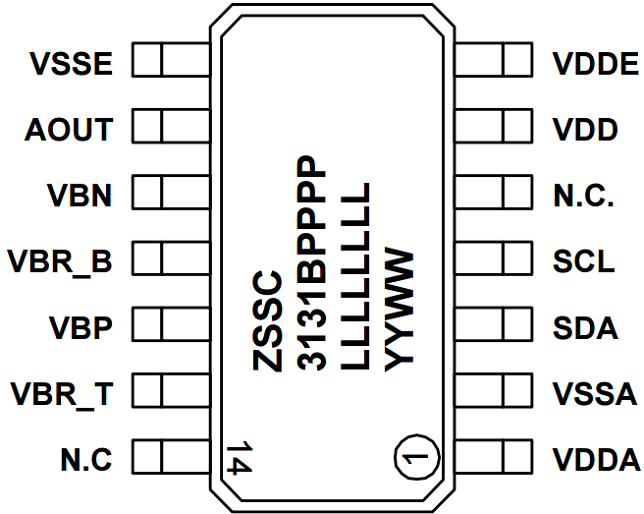

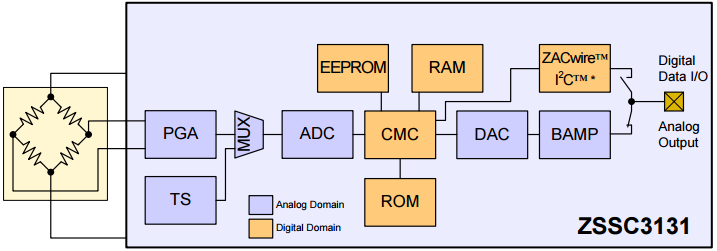

The ZSSC3131 is a member of the ZSSC313x product family of CMOS integrated circuits designed for automotive and industrial sensor applications. All family members are well suited for highly accurate amplification and sensor-specific correction of resistive bridge sensor signals. An internal 16-bit RISC microcontroller running a correction algorithm compensates sensor offset, sensitivity, temperature drift, and non-linearity of the connected sensor element. The required calibration coefficients are stored by the single-pass calibration procedure in an on-chip EEPROM. The ZSSC3131 is optimized for simple switch and cost-sensitive sensor applications. The integrated adjustable digital filter offers the possibility to setup fast switching real-time applications as well as stabilized applications in the event of disturbed or unstable switching input signals.
Features
- Sample rate up to 200 Hz
- ADC resolution 13/14 bit
- Internal temperature compensation
- Integrated adjustable digital filter
- Digital compensation of sensor offset, sensitivity, temperature drift, and non-linearity
- Output options: Ratiometric analog voltage output (5% to 95% maximum, 12.4 bit resolution) or ZACwire™ (digital one-wire-interface)
- Sensor biasing by voltage
- High voltage protection up to 33 V
- Supply current: max. 5.5mA
- Reverse polarity and short circuit protection
- Operation temperature range as wide as -40°C to +150°C
- Traceability by user-defined EEPROM entries
Comparison

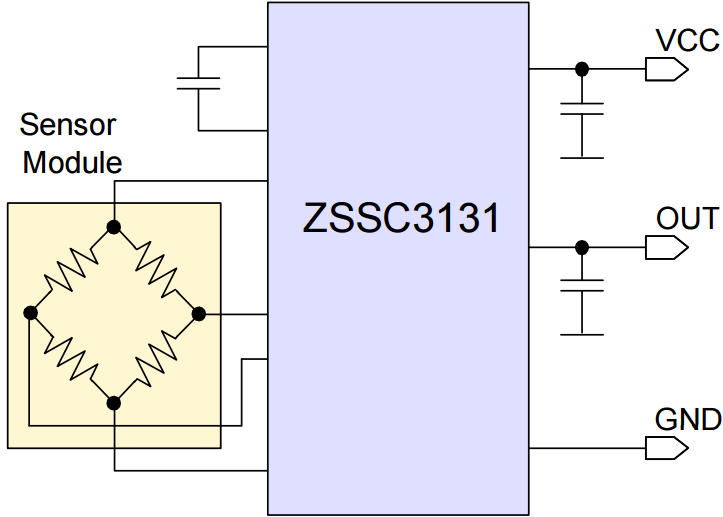

Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 328 KB | |
| Guide | 7Z 1.21 MB | |
| Technical Brief | PDF 440 KB | |
| Application Note | PDF 427 KB | |
| Application Note | PDF 727 KB | |
| Application Note | PDF 1.14 MB | |
| Application Note | PDF 273 KB | |
| Manual - Development Tools | PDF 2.28 MB | |
| Manual - Hardware | PDF 1.13 MB | |
9 items
|
||
Design & Development
Software & Tools
Boards & Kits
Mass Calibration System for ZSSC313x
The ZSSC313x Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSSC313x Sensor Signal...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| WAFER | 0 | -40 to 125°C | Wafer | ||
| WAFER | 0 | -40 to 125°C | Wafer | ||
| SSOP | 14 | -40 to 125°C | Reel | ||
| SSOP | 14 | -40 to 125°C | Tube | ||
| WAFER | 0 | -40 to 150°C | Wafer | ||
| WAFER | 0 | -40 to 150°C | Wafer | ||
| SSOP | 14 | -40 to 150°C | Reel | ||
| SSOP | 14 | -40 to 150°C | Tube |
