Package Information
| CAD Model: | View CAD Model |

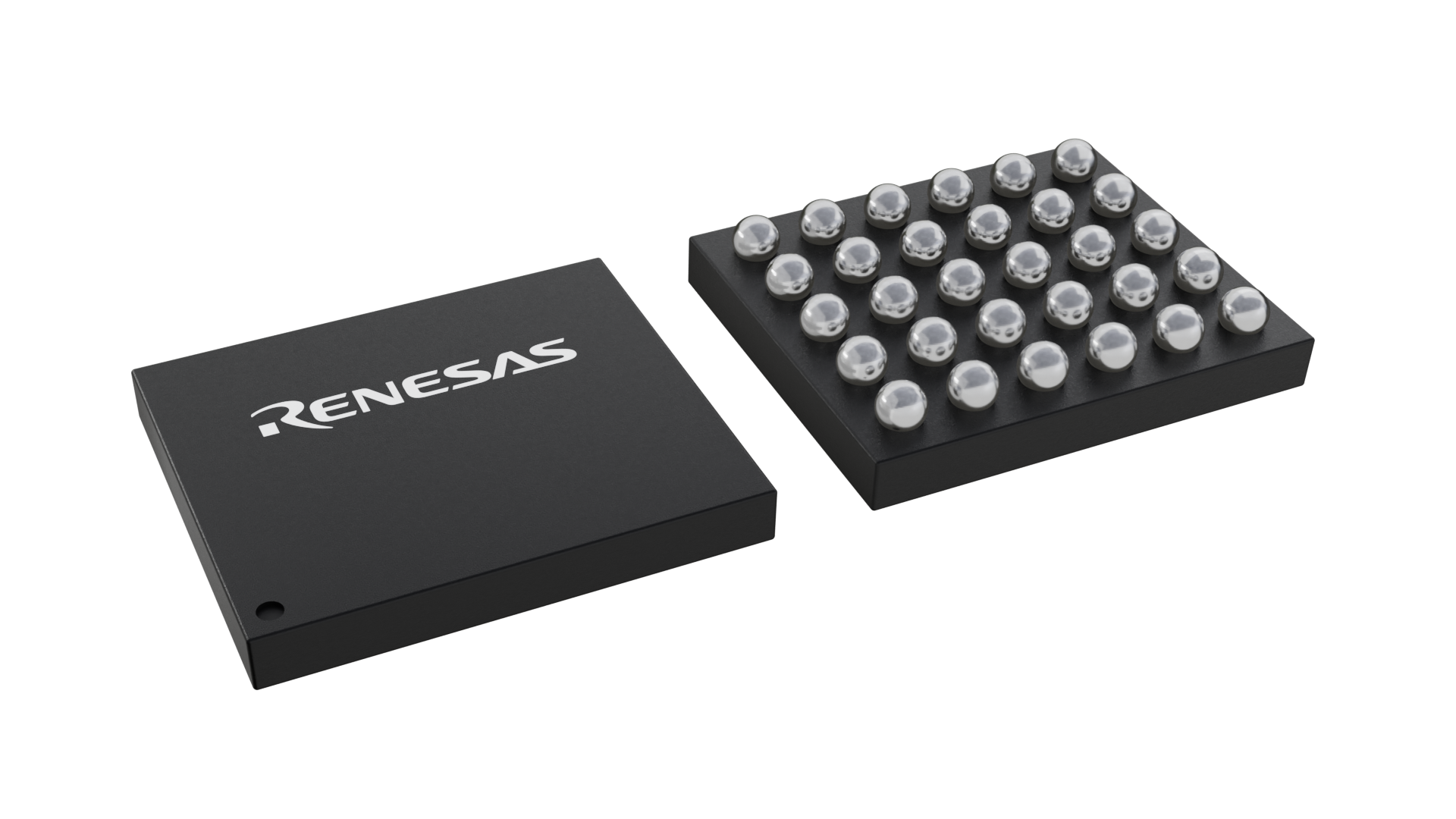

| Pkg. Type: | WLCSP |
| Pkg. Code: | U7 |
| Lead Count (#): | 30 |
| Pkg. Dimensions (mm): | 2.145 x 2.545 x0.53 |
| Pitch (mm): | 0.4 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 1 |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
| Pb (Lead) Free |
Product Attributes
| Lead Count (#) | 30 |
| Carrier Type | Reel |
| Moisture Sensitivity Level (MSL) | 1 |
| Temp. Range (°C) | -40 to +85°C |
| Accepts CC Adapter | Yes |
| Battery Charge Voltage | 2.8 to 4.5 |
| Battery Charge Voltage Adjustment | 10mV steps |
| Battery Chemistry | Single Cell Li+/Polymer |
| Charge Current Limit Accuracy | ±5 |
| Charging Voltage Accuracy (Max) (±%) | 0.5 |
| Function | Programmable input current limit, Supports USBV 2.0 & USB 3.0 and high voltage adaptors |
| Input Current Limit Accuracy (% (±)) | 12 |
| Input Voltage (Max) (V) | 10 |
| Input Voltage (Min) (V) | 4 |
| Output Current 1 (Max) (A) | 1.5 |
| Output Voltage (Typical) (V) | 4.2V |
| Parametric Category | Battery Charger ICs |
| Pkg. Dimensions (mm) | 2.145 x 2.545 x0.53 |
| Pkg. Type | WLCSP |
| Qualification Level | Standard |
| Safety Timer | No |
| Switching Frequency Range (Typical) (kHz) | 2250 - 2250 |
| Thermal Regulation | No |
| Topology [Rail 1] | Buck |
| Trickle Charge Current Range | 5mA to 140mA |
| VIN1 (Max) (V) | 10 |
| VIN1 Trickle Charge (Min) (% CC) | 4 |
| Voltage Accuracy (%) | 0.5 |
Resources for DA9168
Description
The DA9168 is a configurable Battery Management IC (BMIC) with integrated dual LDOs and reverse boost to support USB On-The-Go (USB-OTG). The extremely low quiescent current consumption in a very compact footprint makes it ideally suited for a multitude of space-conscious, battery-powered consumer applications. The fast-growing hearable segment for True Wireless Stereo (TWS), wearable segment for smartwatches, and a range of smart home applications such as smart cameras are examples where the DA9168 is an extremely good fit.
The device comprises a high-efficiency switch-mode charger with power path management capable of supporting up to 1.5A of charge current, dual LDOs that can be configured as load switches, and high-efficiency reverse boost functionality.
DA9168 has several power-saving modes to increase battery life whether the product sits on the shelf or is in operation. Further savings in power are achieved with the ultra-low IQ reverse boost converter that is efficient down to 60μA load currents with low power LDOs.
Benefits
- Low IQ solution
- High efficiency fast charging of up to 1.5A and PFM mode light loads of up to 20mA
- Reverse boost up to 1A and PFM mode on light loads (60μA)
- Low IQ linear chargers (LDOs) that can support up to 350mA
- Single input to support USB input and high voltage adapters - Supports 4.0V to 10.0V input voltage
- Ultra-low leakage state during shipmode
- High accuracy battery charging profile ±5% charge current regulation
- Dynamic power path balancing that reduces charging current and input current as necessary and allows VSYS to draw current from both supplies during peak loads
- Programmable OVP that can be used for a variety of charger applications such as wireless charging (up to 10V), wired (~6V), etc.
- OV, UV protection on VBAT and VSYS inputs
- Inbuilt die temperature monitoring and battery temperature monitoring
