843022I-02

Obsolete

FemtoClock Crystal-to- 3.3V,2.5V LVPECL Clock Generator

843022I-02 Datasheet
NOTICE - The following device(s) are recommended alternatives:
8T49N241 - FemtoClock NG Universal Frequency Translator

Overview

The 843022I-02 is a Gigabit Ethernet clock generator that uses a 25MHz crystal to synthesize 125MHz or 62.5MHz. The 843022I-02 has excellent phase jitter performance, over the 12kHz – 20MHz integration range. The 843022I-02 is packaged in a small 16-pin VFQFN, making it ideal for use in systems with limited board space.

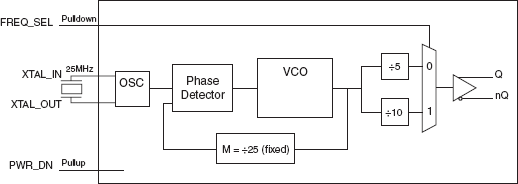

843022I-02 - Block Diagram
843022I-02 - Pinout
843022I-02 - Block Diagram
843022I-02 - Pinout
  • One differential 3.3V or 2.5V LVPECL output
  • Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal
  • Output frequencies: 125MHz or 62.5MHz (selectable)
  • RMS phase jitter @ 125MHz, using a 25MHz crystal (12kHz - 20MHz): 0.57ps (typical)
  • Full 3.3V or 2.5V operating supply
  • -40°C to 85°C ambient operating temperature
  • Available in lead-free (RoHS 6) package

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.

Explore ECAD Models
Diagram of ECAD Models

Models
Type Title Date
Model - IBIS
843022I-02 IBIS Model
ZIP 60 KB
1 item
