853S024

Obsolete

Low Skew,1-to-24,Differential-to-3.3V,2.5V LVPECL Fanout Buffer

ICS853S024 Datasheet

Overview

The 853S024 is a low skew, 1-to-24 Differential-to-3.3V, 2.5V LVPECL Fanout Buffer. The PCLK, nPCLK pair can accept most standard differential input levels. The 853S024 is characterized to operate from either a 3.3V or a 2.5V power supply. Guaranteed output skew characteristics make the 853S024 ideal for those clock distribution applications demanding well defined performance and repeatability.
853S024 - Block Diagram

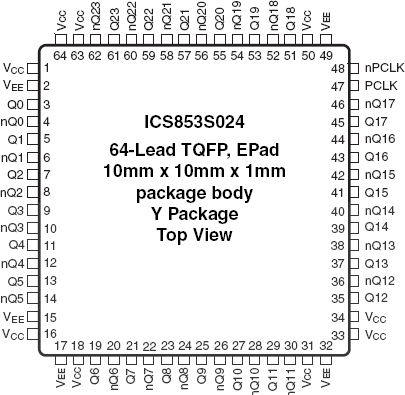

853S024 - Pinout
853S024 - Block Diagram
853S024 - Pinout
  • Twenty four LVPECL outputs.
  • One differential clock input pair
  • Differential input clock (PCLK, nPCLK) can accept the following signaling levels: LVDS, LVPECL, CML
  • Maximum output frequency: 2GHz
  • Translates any single ended input signal to 3.3V, 2.5V LVPECL levels with resistor bias on nPCLK input
  • Output skew: 125ps (maximum)
  • Rise and Fall Time: 180ps (typical)
  • Additive phase jitter, RMS: 0.15ps (typical) @ 156.25MHz
  • Full 3.3V or 2.5V supply voltage
  • 0°C to 70°C ambient operating temperature
  • Available in lead-free (RoHS 6) package

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.

Explore ECAD Models
Diagram of ECAD Models

Models
Type Title Date
Model - IBIS
853S024 IBIS Model
ZIP 10 KB
1 item
