Overview
Description

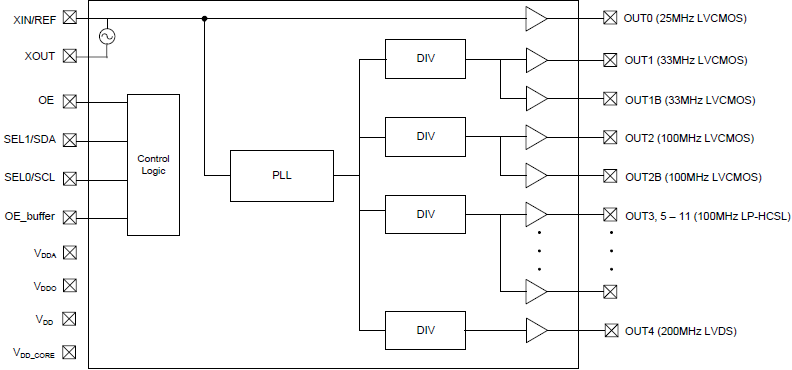

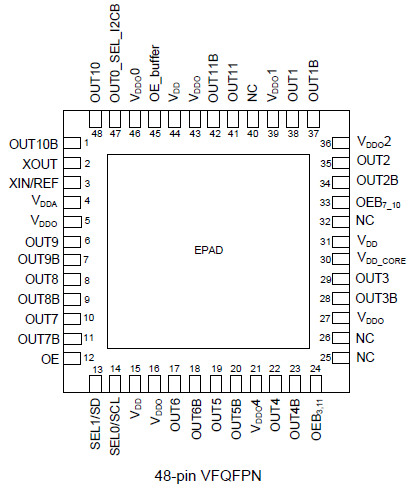

The 6P41505 is a system clock generator intended for 7A1000 and L3A3000 Loongson CPU platforms. The device uses a low-cost 25MHz crystal as an input and can generate the following frequencies:
- 5 × CMOS clocks for system reference
- 12 × 100MHz LP-HCSL with PCIe Gen 3 performance
- 1 × 200MHz LVDS for HT reference
The 6P41505 system clock generator is intended for high-performance consumer, networking, industrial, computing, and data-communications applications.
Features
- High-performance, low phase noise PLL, < 0.7ps RMS typical phase jitter on outputs
- PCIe Gen 1, 2, 3 compliant clock capability
- USB 3.0 compliant clocks
- 1GbE and 10GbE
- Independent spread spectrum capability
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 453 KB | |
| Overview | PDF 2.40 MB | |
2 items
|
||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
