Overview
Description

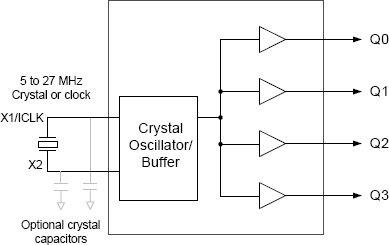

The 556-04 is a low-skew, crystal input compatible clock buffer with oscillator. This device offers the lowest skew. See the 552-02 for a 1-to-8 low skew buffer. For more than eight outputs see the MK74CBxxx Buffalo™ series of clock drivers. Renesas makes many non-PLL and PLL-based low-skew output devices. Contact us for all of your clocking needs.
Features
- Extremely low-skew outputs (50 ps maximum)
- Packaged in 8-pin SOIC
- Operating voltages of 2.5 to 5.0 V
- Low-power CMOS technology
- Industrial temperature range
- Pb (lead) free package
Comparison
Applications
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
