Renesas has a broad lineup of microcontroller products suitable for microwave ovens. These include RX13T Group of high performance MCU, RL78/L1x Series of LCD MCUs, which are built around a high-performance CPU and integrate a PWM (Pulse Width Modulation) function for IGBT control and A/D converters to handle a variety of sensor inputs. The RX130 Group, the RX230 Group and the RA2L1 Group incorporate a touch detection circuit. Also, recent trend of voice command operation for advanced HMI is realized by the RX651 group.

图像

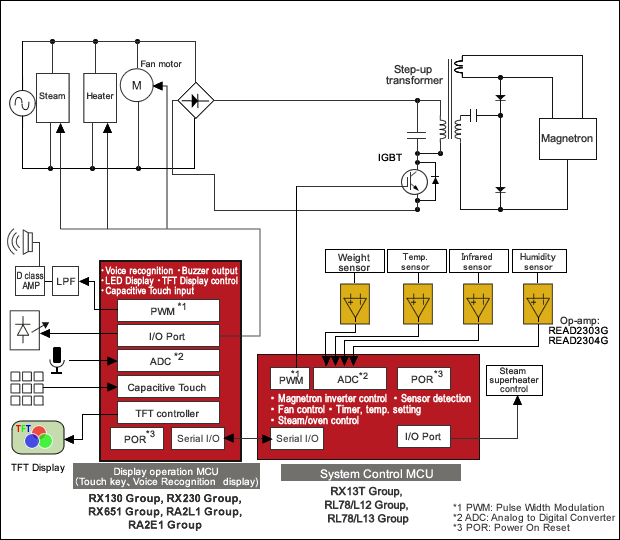

Microwave Oven (High-End)Block Diagram

Related Products

Block Semiconductor Device Recommended Products Features
Display Control MCU RX130 Group Enhanced Capacitive Touch function, 5V operation
RX230 Group Enhanced DSP/FPU, Connectivity (USB), HMI (Capacitive Touch ), Security, Low power consumption, 5V
RX651 Group Large-capacity RAM, Connectivity (Ethernet, USB), HMI (LCD), Security, Motor
RA2L1 Group
RA2E1 Group
Arm Cortex-M23 core, 5V operation, System Control, Capacitive Touch, Safety
System Control MCU RX13T Group 32-bit MCU including on-chip FPU, single motor control applications, reduce board area and BOM costs
RL78/L1x Series 16-bit MCU, Segment LCD controller/driver
Sensor Output CMOS Op-amp READ2303G
READ2304G
Full range input/output, high slew rate
Low power consumption, high slew rate
