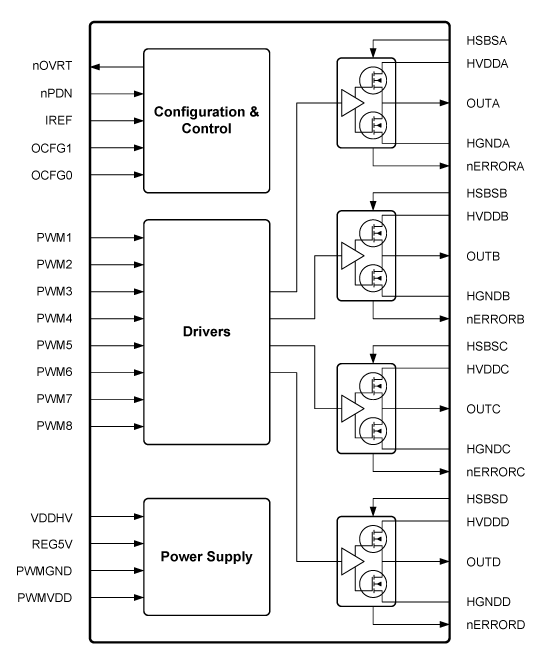

Renesas' Class-D amplifier power stage outputs are configurable as four separate half-bridge outputs, as two full-bridge outputs, or combinations of half-bridge and full-bridge.

Analog Products

Product Selection Table

    Processing table
    Part Number
    Input Channels
    Integrated Power Stages
    Supported Audio Inputs
    Supported Audio Outputs
    D2 Audio DSP Customization GUI
    Advanced Features
    Lead Count (#)
    Pkg. Type
    D2-24044
    Digital Audio Amplifier Power Stage    		 4 4 8x PWM inputs 4x Configurable Power Stages Yes Configurable Full-Bridge, Full Half Bridge, Half-Bridge 38 TSSOP-EP
    DA7202
    10W Mono Class D Amplifier for 2S Battery-Operated Portable Devices    		 No 9-WLCSP
