Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | |
| Pkg. Code: | |
| Lead Count (#): | |
| Pkg. Dimensions (mm): | |
| Pitch (mm): |
Environmental & Export Classifications
| Pb (Lead) Free | |
| Moisture Sensitivity Level (MSL) | |
| ECCN (US) | |
| HTS (US) |
Product Attributes
| Protocol | MIPI |
| Function | D-PHY, Transceiver |
| Process | Soft macro & TSMC 40nm LP |
| Data Rate (Mbps) | 1000 |
| Interface | CSI-2, DSI, PPI |
| Number of Channels | 2 |
| Supply Voltage Range (V) | Core: 1.1V, I/O: 1.8V |
| Data Rate RS-485/RS-232 | 1000 |
Resources for UMIPI_DM11L2V10_TOP
Description

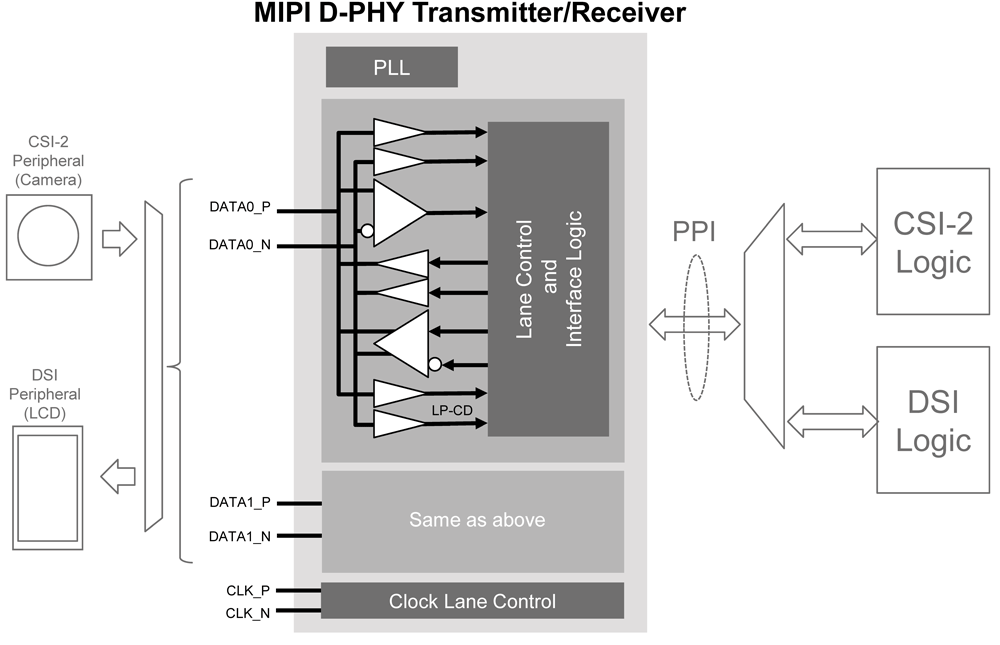

Renesas MIPI® D-PHY™ Transmitter/Receiver IP is a 2 data lanes transmitter/receiver hard macro for DSI℠/CSI-2®, fabricated using TSMC's 40nm Low Power (LP) process.
