Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | STQFN24 |
| Pkg. Code: | |
| Lead Count (#): | 24 |
| Pkg. Dimensions (mm): | 3.0 x 3.0 x 0.55 |
| Pitch (mm): |
Environmental & Export Classifications
| ECCN (US) | EAR99 |
| HTS (US) | 8542.31.0060 |
| Moisture Sensitivity Level (MSL) | 1 |
| Pb (Lead) Free | Yes |
Product Attributes
| Pkg. Type | STQFN24 |
| Lead Count (#) | 24 |
| Carrier Type | Tape & Reel |
| Temp. Range (°C) | -40 to +85°C |
| Country of Assembly | TAIWAN |
| Country of Wafer Fabrication | TAIWAN |
| GPIOs (#) | 19 |
| Longevity | 2039 May |
| Look-up Table (LUTs) | 1120 |
| Moisture Sensitivity Level (MSL) | 1 |
| On-chip Oscillator Freq. | 50MHz |
| PLLs | 1 |
| Pb (Lead) Free | Yes |
| Pkg. Dimensions (mm) | 3.0 x 3.0 x 0.55 |
Resources for SLG47910
Description

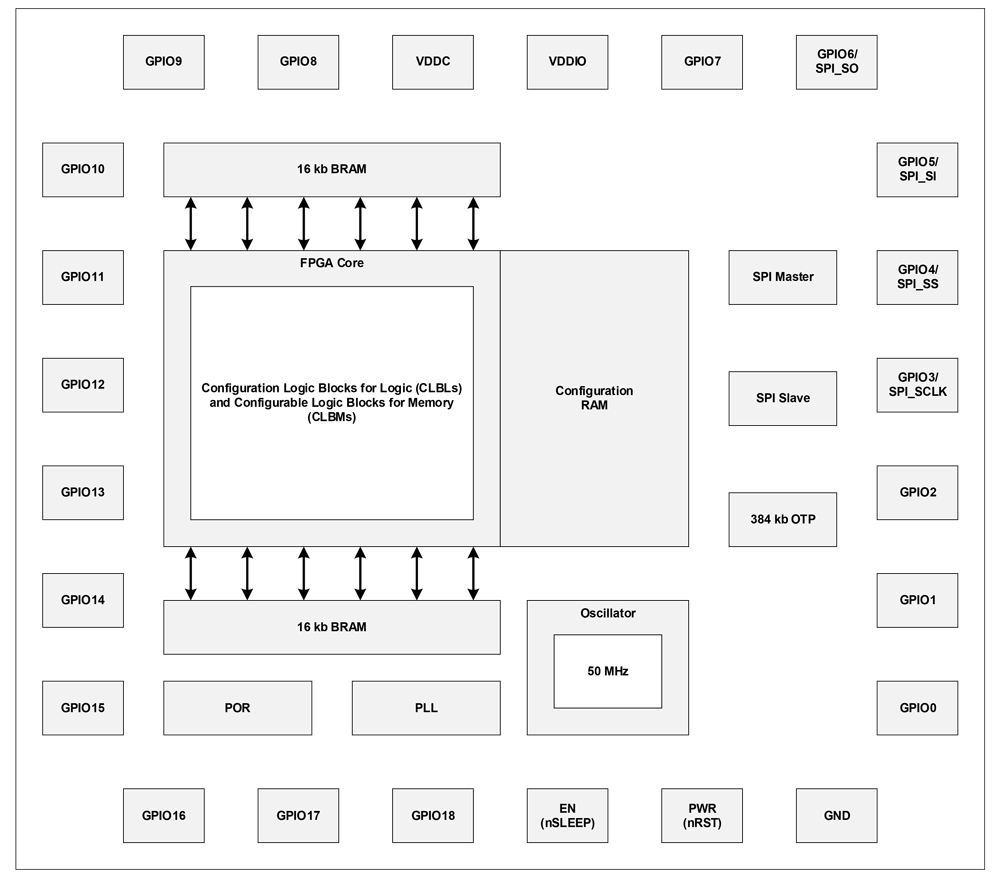

The SLG47910V ForgeFPGA provides a small, low-power component for common FPGA applications. Using this device, a circuit design is created by programming the one-time programmable (OTP) non-volatile memory (NVM) to configure the interconnect logic, the IO pins, and the macrocells of the SLG47910V. This highly versatile device allows a wide variety of FPGA applications to be designed within a very small, low-power integrated circuit.
This device is revolutionizing the low-density FPGA space. By combining a robust and well-sorted feature set with low power consumption, low price, and free, easy-to-use development software, the SLG47910V ForgeFPGA opens the door to low-density FPGA development to anyone and everyone.
Benefits
- Ultra-low power consumption for use in even the most demanding wearable and power-constrained applications
- Small package size to allow for tremendous design flexibility
- Advanced 6-input 2-output lookup table (LUT) structure for increased efficiency in high-usage designs
- Low price that opens the low-density FPGA market to customers of all sizes
